How To Test Fax Machines, Lines, And Online Services Effectively
Testing a fax machine or line requires verifying both physical analog transmission integrity and digital protocol handshakes using loopback tests, remote echo services, or dedicated online diagnostic tools. Ensuring proper configuration prevents silent communication failures, dropped packets during T.38 translation, and failed G3/Super G3 baud rate syncs.
Essential Prerequisites and Equipment Setup for Fax Diagnostics
Verifying functional facsimile capabilities demands a structured approach to both legacy analog telephony and modern Voice over IP (VoIP) infrastructures. Whether troubleshooting a physical multi-function printer (MFP) connected to an Analog Telephone Adapter (ATA) or validating a cloud-based digital fax portal, a systematic evaluation eliminates guesswork.
- Essential Gear and Tools: A working analog telephone handset (butt set) for dial-tone verification, an active telephone wall jack (RJ11), standard RJ11 patch cables, a dedicated test destination number, and administrative access to your VoIP gateway or cloud fax portal.
- Mandatory Prerequisite Knowledge: Familiarity with Group 3 (G3) analog fax protocols, baud rates ranging from 9600 to 33,500 bps, error correction mode (ECM), and the distinction between pass-through and T.38 real-time fax over IP protocols.
- Estimated Budget and Duration: Basic self-testing incurs zero additional cost if using public test lines or an existing secondary fax number. Complete diagnostic execution and log analysis typically require 15 to 30 minutes.
Step-by-Step Procedure to Test Your Fax Line and Hardware
Step 1: Verify Physical Connectivity and Analog Dial Tone
Inspect all physical links connected to the fax machine or ATA. Ensure the line cord is securely plugged into the port labeled LINE, rather than the port labeled EXT or PHONE, which is meant for an external telephone. Disconnect the line cord from the back of the fax machine and plug it directly into a standard analog telephone handset. Listen closely for a clear, uninterrupted dial tone. If you hear static, hums, or complete silence, the issue resides within the internal building wiring, the local exchange carrier (LEC), or your VoIP telephony provider, rather than the fax machine itself.
Step 2: Execute an Internal Hardware and Print Mechanism Test
Print an internal test report or configuration sheet directly from the fax machine's control panel. Access the system menu, navigate to the report or maintenance settings, and select Print Configuration or Fax Report. Inspect the printed output for missing toner, streaks, banding, or paper feed jams. If the machine cannot successfully print an internal report, resolve hardware, paper path, or print cartridge issues before attempting any external transmission tests.
Step 3: Perform a Free Remote Loopback or Echo Test

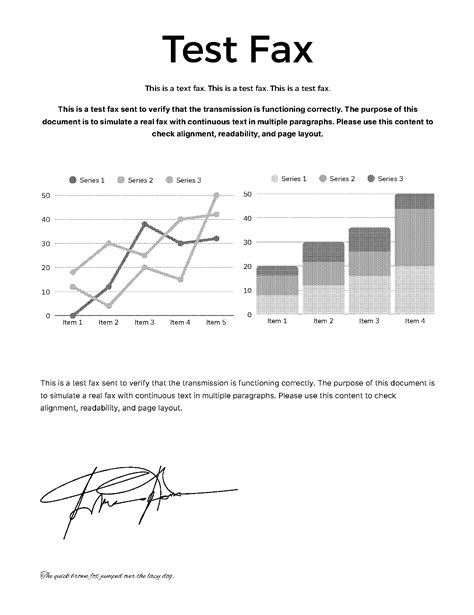

Send a manual test transmission to a known working automated fax echo line. Dial the target test number using the machine's keypad, place a single-page document face-down in the Automatic Document Feeder (ADF) or flatbed scanner, and press the Start button. Automated test numbers, such as the HP public fax test line (1-888-473-2963) or the US Navy automated test service, will receive your transmission and automatically send a confirmation page back to your machine within a few minutes.
Pro-Tip: If the returning confirmation page is entirely black, heavily distorted, or fails midway, your machine's baud rate is likely set too high for the line quality. Lower the transmission speed from Super G3 (33.6 kbps) down to standard G3 (14.4 kbps or 9600 bps) in the device settings and retest.
Step 4: Validate Cloud-Based and Online Fax Services
Log into your digital fax dashboard or software client if you utilize an online cloud fax service rather than a physical machine. Send a test document directly from the web interface to a verified external receiving number, such as an office colleague's machine or a personal analog line. Check your cloud provider's delivery log to verify that the session status reports as completed or successful, and review your inbound email or dashboard for the returned confirmation receipt.
How to Test Your Fax Line
Comparison of Fax Testing Methods and Transmission Protocols
| Testing Method | Primary Use Case | Advantages | Technical Limitations |
|---|---|---|---|
| Analog Loopback (Echo Line) | Physical landlines and analog multi-function printers. | Verifies raw carrier tone, handshaking, and print output. | Dependent on third-party test line availability and uptime. |
| ATA / VoIP T.38 Testing | Office environments utilizing SIP trunks and digital adapters. | Isolates packet loss, jitter, and codec translation errors. | Requires network administrator access to SIP gateway logs. |
| Cloud-to-Cloud Portals | Software-as-a-Service (SaaS) digital fax deployments. | Bypasses hardware failures; tests web API and SMTP-to-fax gateways. | Does not validate physical local loop wiring or analog voltages. |
Troubleshooting Common Fax Transmission Failures and Errors
- Root Cause (Error Code 401 / Busy Signal): The receiving party's line is actively engaged in another transmission, or your local phone system requires an access prefix (such as dialing 9) to reach an outside line.
- Actionable Fix: Verify dial prefix settings in the fax machine configuration menu, confirm the destination number is correct, and schedule the retry for a later time.
- Root Cause (Communication Error / Connection Dropped Mid-Page): Severe packet loss, jitter, or clock slip on a VoIP network interrupting the G3 audio tones during transmission.
- Actionable Fix: Disable high-compression codecs like G.729, enforce the G.711u law codec, enable T.38 Real-Time Fax Relay on your firewall and VoIP gateway, or lower the fax machine's baud rate.
- Root Cause (Incomplete Receipt / Blank Pages Received): The transmitting machine's scanner glass is dirty, or the receiving machine's rollers are failing to pull the thermal/paper medium correctly.
- Actionable Fix: Clean the ADF scanner glass and white calibration strip with a lint-free cloth dampened with isopropyl alcohol, and clear any dust from the optical sensors.
Frequently Asked Questions
Can I test a fax machine without a dedicated telephone line?
Yes, you can test a physical fax machine without an active traditional landline by utilizing an Analog Telephone Adapter (ATA) connected to an active VoIP broadband internet service. Alternatively, you can bypass hardware entirely and use web-based digital fax testing platforms to evaluate document rendering and email-to-fax gateways.
What causes a fax to send successfully but fail to receive?
Failing to receive inbound faxes typically points to a ring-detection issue, incorrect station identification (CSID) settings, or a shared phone line conflict where an answering machine or voice service picks up the line before the fax can intercept the call. Ensure your fax machine is set to the correct receive mode, such as Fax/Tel or Auto-Receive, rather than Manual mode.
How do I fix error codes related to ECM (Error Correction Mode)?
Error Correction Mode issues occur when poor line quality causes excessive data corruption, and the two machines fail to agree on packet retransmission protocols. Access your machine's advanced fax settings, temporarily disable ECM to force a raw pass-through transmission, or conversely, enable ECM if your VoIP carrier supports robust T.38 error recovery.
Why is my fax transmission failing over a VoIP network?
VoIP networks compress and packetize audio data, which disrupts the continuous audio tones required by traditional analog fax modems. To resolve this, configure your network router and VoIP gateway to prioritize SIP signaling, enable T.38 fax relay, and disable silence suppression on the active phone port.
How often should I perform routine fax diagnostics?
For mission-critical enterprise environments, running a monthly automated loopback test and reviewing transmission error logs ensures high availability. For small office or home office setups, testing the line whenever you change internet service providers or phone carriers is sufficient.
