How To Tighten A Rear View Mirror: A Complete Step-by-Step DIY Guide

Tightening a loose or shaking rear view mirror requires identifying the mechanical connection point—typically a Torx screw (T15 or T20) or a spring-clip mount securing the mirror bracket to the windshield button. By carefully securing the mounting screw to a precise torque of 1.5 to 2.0 Nm or reapplying a specialized structural acrylic adhesive, you can eliminate dangerous vibrations and restore optimal driver visibility.

A vibrating or loose rear view mirror is more than a minor annoyance; it is a serious safety hazard that distorts your spatial awareness and compromises rearward visibility. Over time, the constant vibration of driving, thermal expansion from direct sunlight, and physical adjustments wear down the fastening mechanisms holding your mirror to the windshield.

Understanding how to tighten a rear view mirror depends on identifying your vehicle's specific mounting assembly. Most modern automotive manufacturers utilize one of two systems: a mechanical set screw securing the mirror bracket to a metal mounting button, or a slide-on spring clip that locks into place. Addressing these issues requires systematic diagnostic steps and the proper tools to avoid cracking the windshield glass.

Pre-Repair Diagnostics and Required Tooling

Before attempting any repairs, you must determine where the looseness originates. Sit in the driver's seat and gently wiggle the mirror housing. Note whether the movement is occurring at the ball-and-socket joint directly behind the mirror casing, at the base where the bracket meets the glass, or if the entire metal button is peeling away from the windshield surface.

If the base bracket moves while the metal button remains adhered to the glass, a mechanical adjustment is needed. If the entire metal button shifts or has detached completely, you will need to perform a full adhesive re-bonding procedure.

Equipment, Materials, and Benchmarks Checklist

• Essential Hand Tools:


  • Torx screwdrivers or key set (specifically T15 and T20 sizes)
  • Precision Allen/Hex key set (metric, ranging from 2mm to 4mm)
  • Flathead screwdriver (small, insulated shaft preferred)
  • Windshield mirror removal tool (optional, for spring-clip style mounts)
• Adhesive and Cleaning Materials (For Detached Buttons):


  • Two-part specialized rearview mirror adhesive (such as Loctite 37438 or Permatex Rearview Mirror Adhesive kit)
  • Isopropyl alcohol (91% or higher concentration)
  • Single-edge razor blade scraper
  • Lint-free microfiber towels
  • Fineline painter's tape or masking tape
• Operational Benchmarks:


  • Estimated Budget: $5 to $25 depending on whether adhesive is required.
  • Working Time: 10 to 15 minutes for mechanical tightening; 24 hours of full cure time if re-gluing the mounting button.
  • Torque Specification: 1.5 to 2.0 Nm maximum for set screws to prevent windshield fracturing.

Step-by-Step Mirror Mechanical and Structural Re-Securing

Follow these technical procedures to secure your mirror assembly based on its structural design.

Step 1: Accessing the Mounting Bracket and Set Screw

Park your vehicle on a flat, level surface away from direct sunlight. Direct heat can cause the windshield glass to expand, increasing the risk of thermal shock and cracking during tool pressure.

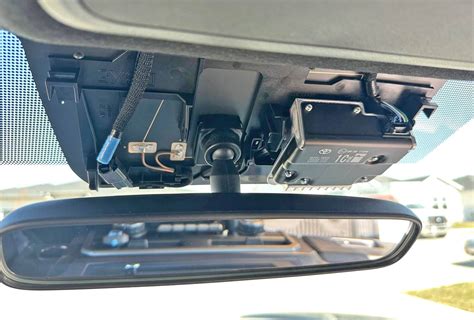

Locate the mounting base where the mirror arm connects to the glass. If your vehicle features a plastic wire cover or shroud (common in vehicles with rain sensors or auto-dimming mirrors), carefully pry the plastic halves apart using a non-marring plastic trim removal tool. Look underneath or on the side of the mounting bracket to find the recessed fastening screw.

Step 2: Tightening Torx or Allen Set Screws

Once the fastener is exposed, determine if it is a Torx screw (typically a T15 or T20) or a hex socket screw.

1. Insert the correct driver head directly into the screw head, ensuring it is fully seated to prevent stripping.
2. Turn the screw clockwise to tighten.
3. Apply steady, moderate pressure.

Warning: Do not over-torque this screw. The metal mounting button is bonded directly to the glass. Over-tightening can apply uneven stress to the windshield, causing stress cracks that will require a full windshield replacement. Tighten until the screw is snug, aiming for approximately 1.5 to 2.0 Nm of torque.

Step 3: Servicing Spring-Loaded or Slide-On Mounts

Many domestic manufacturers, particularly Ford and General Motors, utilize slide-on mounts held in place by metal spring clips inside the bracket instead of set screws. If your mirror slides on a tapered wedge button and has no visible screw:

1. Insert a flat, thin tool (such as a specialized mirror removal tool or a small flathead screwdriver) into the small slot at the bottom base of the bracket.
2. Gently pry the retaining spring tab outward while pushing the mirror bracket upward toward the roofline to slide it off the button.
3. Inspect the internal spring clip. If the metal tab has flattened over time, use a pair of needle-nose pliers to gently bend the tab back out to increase its spring tension.
4. Align the bracket over the top of the wedge button and slide it downward until you hear a distinct, metallic click, confirming that the spring clip has locked securely onto the button.

Step 4: Re-Bonding a Failed Mounting Button

If the metal button has peeled away from the glass or is visibly loose, the mechanical fasteners have nothing secure to hold onto. You must re-bond the button using a chemical adhesive engineered specifically for automotive glass.

1. Mark the Position: On the outside of the windshield, use a dry-erase marker or painter's tape to mark the exact height and horizontal position of the old button.
2. Surface Cleaning: Use a new, single-edge razor blade to scrape away all residual adhesive from both the windshield glass and the back of the metal button. Wipe both surfaces with 91% isopropyl alcohol using a lint-free microfiber towel until no residue remains.
3. Apply the Primer/Activator: Open the adhesive kit's liquid activator vial. Apply a single, thin coat of activator to the windshield glass area and to the back of the metal button. Allow it to dry completely for 1 to 2 minutes.
4. Apply the Structural Adhesive: Place a single, small drop of the structural acrylic adhesive directly onto the center of the mounting button's backside. Do not spread it out; pressing the button to the glass will distribute the adhesive evenly.
5. Position and Press: Align the button correctly (ensure the tapered side is facing up, as installing it upside down prevents the mirror arm from sliding back on). Press the button firmly against the windshield at your marked spot. Hold continuous, firm manual pressure for exactly 60 seconds.
6. Temporary Support: Secure the button to the windshield with a piece of painter's tape to prevent slipping.

Pro-Tip: Do not reinstall the heavy mirror assembly immediately. Even if the adhesive package claims "fast cure," wait a full 24 hours for the polymer chains to completely cross-link and cure. Rehanging the mirror too early will cause the joint to fail under the weight and vibration of the mirror.

Step 5: Stabilizing a Loose Swivel Ball Joint

If the base mount is completely solid but the mirror housing itself flops or droops when driving, the internal ball joint is worn out.

1. Some aftermarket mirrors feature a tensioning collar or a set of small tension screws directly behind the mirror casing where the ball joint enters. Tighten these screws clockwise in quarter-turn increments.
2. If your mirror has a sealed plastic collar with no tension screws, you can restore friction to the joint by applying a small drop of thread-locking compound (such as Loctite 242) or cyanoacrylate adhesive directly into the ball joint gap. Immediately rotate the mirror in a circular motion to distribute the fluid throughout the socket. Hold the mirror in your desired driving position for 2 to 3 minutes as it begins to set, creating a higher-friction barrier that prevents unwanted movement while still allowing manual adjustments.

Automotive Rear View Mirror Mounting Specs and Adhesive Properties

Different vehicle brands and structural designs require specific tooling and curing profiles to ensure long-term stability. The following table highlights the standard parameters for common automotive configurations.

Addressing Common Mechanical Failures and Windshield Hazards

Working on automotive glass requires precise execution to avoid costly mistakes. Below are the most common failures encountered during rear view mirror tightening, along with their root causes and structural fixes.

The Windshield Glass Cracks During Screw Tightening

• Root Cause: The installer applied excessive torque to the set screw, or the metal button had a tiny piece of grit trapped underneath it. This created an isolated pressure spike on the glass surface, resulting in a radiating stress fracture.
• Actionable Fix: Stop tightening immediately. If a crack has developed, the windshield must be professionally repaired or replaced. To prevent this, always ensure the backside of the metal button is perfectly flat and free of debris before mounting, and never tighten the set screw beyond the recommended 2.0 Nm threshold.

The Bonded Button Detaches Again Within 24 Hours of Re-gluing

• Root Cause: The surface was not thoroughly prepped, or the mirror assembly was reinstalled before the adhesive reached its full structural cure. Trace amounts of old adhesive or glass cleaner containing ammonia will prevent the acrylic adhesive from cross-linking.
• Actionable Fix: Remove the button and scrape the glass entirely clean down to the bare silica. Avoid using standard household glass cleaners; use only 91% or higher isopropyl alcohol. Re-apply the activator, apply a single drop of fresh adhesive, and strictly wait 24 hours before mounting the heavy mirror arm.

The Mirror Vibrates Heavily at Highway Speeds But Feels Tight to the Hand

• Root Cause: The mirror arm is structurally secure, but the internal dampening spring inside the mirror's ball-and-socket joint has collapsed, or the vehicle has unbalanced tires causing resonant frequency vibrations.
• Actionable Fix: Check your tire balancing if the vibration is speed-dependent. If the issue is isolated to the mirror joint, apply a high-viscosity silicone dampening grease inside the ball joint socket, or replace the mirror housing while keeping the original windshield mount button.

Frequently Asked Questions

What tool is needed to tighten a rear view mirror?

Most modern vehicles require a T15 or T20 Torx screwdriver to tighten the small set screw at the base of the mirror bracket. Some vehicles use a metric Allen key (usually 2mm or 2.5mm) or a simple flathead screwdriver to manipulate the internal spring-retaining clip.

Can I use regular super glue to fix my rear view mirror?

No, you should never use standard household super glue (cyanoacrylate) to bond a mirror button to a windshield. Standard super glue is not formulated to withstand the extreme temperature fluctuations of automotive glass, nor can it handle the constant sheer weight and vibration of the mirror, leading to rapid failure and potential windshield damage.

How do I tighten a loose ball joint on a rear view mirror?

If the ball joint is loose and does not feature adjustment screws, you can apply a drop of medium-strength thread locker or super glue directly into the joint's socket. Work the liquid into the joint by rotating the mirror, then position it to your preferred angle and let it dry to increase internal friction.

Why does my rear view mirror shake when I drive at high speeds?

This is typically caused by a slightly loose set screw at the base, a worn spring clip, or a worn ball-and-socket joint. If the mounting button is solid against the glass, tightening the base set screw or applying a dampening compound to the ball joint will eliminate the vibration.

How long does rearview mirror adhesive take to cure?

While most rearview mirror adhesives will set and hold the metal button in place within 60 seconds, they require a full 24 hours to cure structurally. Do not attach the heavy mirror assembly to the button until this curing period is complete to prevent the joint from shearing off.

Restore Your Vehicle's Road Safety and Visibility

Do not compromise your safety by driving with a loose or vibrating rear view mirror. By using the correct tools, cleaning techniques, and structural adhesives outlined in this guide, you can quickly achieve a vibration-free, factory-firm mount that ensures maximum visibility on every journey.
