Mastering The Titration Curve: Accurate Methods To Identify The Equivalence Point
The equivalence point of a titration occurs when the number of moles of titrant added is stoichiometrically equal to the number of moles of analyte present in the sample. Precise identification is achieved by locating the inflection point on a pH-volume curve, typically through the first derivative maximum or the second derivative zero-crossing, ensuring analytical accuracy within 0.1 percent error margins.
Essential Prerequisites for Precision Titration Analysis
Before initiating the titration, ensure the experimental environment is calibrated to minimize systemic error. The reliability of your equivalence point determination depends entirely on the stability of your instrumentation and the purity of your reagents.
- Essential Equipment: A calibrated pH meter with a glass electrode, a digital burette (with 0.01 mL resolution), a magnetic stirrer with a PTFE-coated stir bar, and a high-precision volumetric pipette.
- Chemical Standards: NIST-traceable buffer solutions (pH 4.00, 7.00, and 10.00) for three-point electrode calibration.
- Technical Prerequisites: A stable lab environment (temperature controlled at 25 degrees Celsius), consistent stirring speed to prevent vortex-induced electrode interference, and thorough rinsing of the electrode with deionized water between trials.
- Estimated Duration: 20 to 40 minutes per titration, depending on the titration rate near the expected equivalence volume.
Procedural Workflow for Identifying Equivalence Points
The identification of the equivalence point requires moving beyond simple colorimetric indicators, which are subject to human visual bias. Utilizing the following analytical methods provides the mathematical rigor required for high-precision chemistry.
Step 1: Initial Data Collection and Baseline Establishment
Begin by performing a preliminary, fast-paced "scouting" titration to estimate the approximate volume of titrant required. Once the rough range is identified, perform a precise titration by adding titrant in increments of 0.5 mL until you are within 1.0 mL of the expected equivalence volume. From this point, reduce your addition to 0.05 mL or 0.10 mL increments to capture the sharpest part of the curve.
Pro-Tip: Always record the pH only after the reading has stabilized for at least 5 seconds. Floating readings indicate that the reaction or the electrode response has not yet reached equilibrium.
Step 2: Constructing the First Derivative Plot
The equivalence point is the location where the rate of change of pH with respect to volume is at its absolute maximum. Plot the change in pH divided by the change in volume against the average volume added for each interval. The peak of this bell-shaped curve on your graph represents the equivalence point volume.
Warning: Be aware that noisy data can create multiple small peaks. Use a moving average filter on your data points if the electrode is fluctuating significantly to avoid false positives.
Step 3: Applying the Second Derivative for Refinement
For maximum precision, particularly in weak acid-weak base titrations where the inflection is less abrupt, calculate the second derivative. This involves taking the derivative of the first derivative plot. The point where the second derivative crosses the zero axis on the volume (x) axis is the exact mathematical equivalence point. This method effectively narrows the margin of error when the first derivative peak is broad.
Step 4: Verification and Endpoint Correction
Compare your calculated equivalence point volume against the theoretical stoichiometric expectation. If the difference exceeds your required precision, consider factors such as carbon dioxide absorption from the air, which can shift the pH of basic titrants, or ionic strength effects that alter the activity coefficient of the hydronium ions.

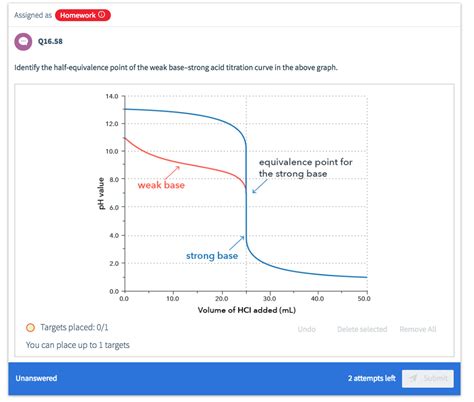

Titration Curve Generator | Acid-Base Equivalence Point
Analytical Parameters and Method Comparison
The choice of method for determining the equivalence point should align with the nature of the titration and the required level of laboratory precision.
| Method | Resolution Capability | Primary Limitation | Ideal Application |
|---|---|---|---|
| Visual Indicator | Low | Human subjective error | Educational and field testing |
| pH-Volume Curve | Medium | Inflection point ambiguity | Standard analytical protocols |
| First Derivative | High | Sensitive to volume interval size | Routine lab grade verification |
| Second Derivative | Very High | Requires high-quality data sets | Research and high-precision assays |
Common Procedural Failures and Field Remedies
Even with sophisticated equipment, variables in the laboratory environment can lead to skewed results. Address these failures systematically to restore data integrity.
- Incorrect Electrode Response: If the pH meter displays sluggish movement or drift, the glass bulb likely has a protein buildup or a depleted hydration layer. Fix: Soak the electrode in a 0.1 M hydrochloric acid solution for 15 minutes, then re-calibrate with fresh buffer solutions.
- Improper Titration Speed: Adding titrant too quickly prevents the chemical reaction from reaching equilibrium, resulting in a distorted curve. Fix: Adopt a "titration-to-stability" approach where the next volume increment is only added after the pH reading remains constant for a minimum duration.
- Carbonate Interference: When titrating strong bases, atmospheric CO2 reacts to form carbonic acid, effectively "poisoning" the titrant. Fix: Use a soda-lime guard tube on the burette and prepare titrants using CO2-free, boiled deionized water.
Frequently Asked Questions
Why does the equivalence point differ from the endpoint?
The equivalence point is a theoretical calculation where the stoichiometric reaction is complete. The endpoint is the physical point where an indicator changes color or a meter records a specific pH; they are theoretically intended to be identical, but experimental lag often creates a slight, measurable discrepancy.
How do I handle titration curves with multiple equivalence points?
In polyprotic acids, such as phosphoric acid, you will observe multiple plateaus. Identify each equivalence point by looking for separate peaks in the first derivative plot, corresponding to the sequential dissociation of each acidic proton.
Does temperature affect the equivalence point?
Yes, temperature shifts the value of the ion-product constant of water, which alters the pH at which the equivalence point occurs. Always perform titrations at a consistent temperature to ensure that the equivalence point remains comparable across different trials.
Can I find the equivalence point without a computer?
Yes, you can manually calculate the derivatives using a standard scientific calculator. By recording volume (V) and pH (Y) values, you can compute the change in Y over the change in V for each successive pair, allowing you to plot the derivative manually on graph paper.
Optimize Your Analytical Workflow Today
Achieving consistent results in your titration analysis requires a disciplined approach to equipment maintenance and data processing. Implement these derivative-based methods into your standard operating procedures to elevate your laboratory’s precision and ensure your equivalence point determinations remain beyond reproach.
