Complete Guide To UPVC Door Installation In 2026
Property owners looking to upgrade thermal efficiency, home security, and street appeal frequently opt for unplasticized polyvinyl chloride entryways. Executing a precise uPVC door install requires a deep understanding of structural tolerances, thermal expansion coefficients, and modern multi-point locking mechanisms. This technical guide outlines the professional methodologies, regulatory requirements, and step-by-step procedures necessary to achieve a weather-tight, aesthetically superior fit compliant with contemporary building standards.
Technical Specifications and Pre-Installation Preparation
Modern manufacturing standards demand strict adherence to dimensional accuracy. Before beginning any physical installation, verify the structural opening dimensions against the ordered frame size. A standard uPVC door frame requires a functional tolerance gap of 5mm to 10mm around all four sides to allow for packing, leveling, and perimeter sealing.
- Subfloor Assessment: Ensure the internal threshold sits on a level, load-bearing surface capable of supporting heavy foot traffic and the aggregate weight of the composite or reinforced panel.
- DPC Integration: Confirm that the damp-proof course (DPC) is continuous and properly linked to the threshold tray to prevent rising damp and moisture ingress.
- Tool Calibration: Assemble essential installation implements, including a rotary hammer drill, high-yield low-expansion polyurethane foam, silicone structural sealant, frame packers of varying thicknesses, and a calibrated digital spirit level.
Comprehensive Step-by-Step Installation Procedure
Executing a flawless installation protects the structural integrity of the aperture and ensures smooth operation of the locking apparatus. Follow this structured sequence to complete the procedure efficiently.

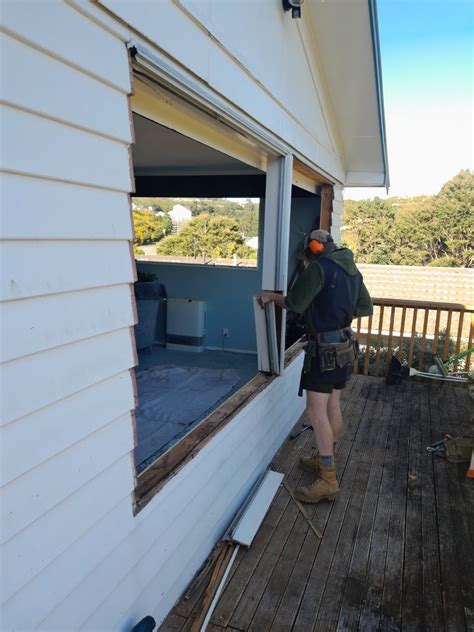

- Removal of the Existing Frame: Carefully strip away architraves, perimeter sealants, and fixings from the old assembly. Pry out the old frame without damaging the surrounding brickwork, render, or internal plaster reveals.
- Aperture Preparation and Cleaning: Clean the exposed brick or block reveals, removing old mortar debris, dust, and degraded DPC materials. Prime porous masonry surfaces if required by the manufacturer's specification.
- Frame Insertion and Temporary Wedging: Lift the bare uPVC outer frame into the aperture. Center the frame evenly, ensuring equal clearance on both jambs and the head. Insert temporary wedges or packers beneath the sill and sides to hold the assembly in position.
- Plumb, Square, and Level Alignment: Using a digital spirit level, check that the hinge jamb is plumb in both vertical planes. Verify that the head is level and the diagonal measurements from corner to corner match precisely to guarantee the frame is entirely square. Failure to square the frame will result in latch misalignment and premature hardware wear.
- Mechanical Fastening: Drill pilot holes through the frame sides and top into the masonry substrate. Secure the frame using heavy-duty concrete screws or frame fixings, placing fixings no more than 150mm from each corner and at maximum intervals of 600mm along the jambs. Avoid overtightening fixings, as thermal expansion can cause the uPVC profile to bow.
- Hanging the Door Leaf: Mount the uPVC door leaf onto the adjustable hinges. Engage the multi-point locking system to test the throw of the deadbolts, hooks, and cams against the keep plates. Use the integrated hex-screw adjustments on the hinges to fine-tune compression, height, and lateral alignment.
- Insulation and Perimeter Sealing: Fill the perimeter expansion gap using low-expansion polyurethane foam to prevent cold bridging. Once cured, trim excess foam flush with the frame and apply a continuous bead of UV-resistant, exterior-grade silicone sealant along the external joint between the uPVC profile and the brickwork.
Upvc Window Installation Guide (Step-by-Step DIY & Pro Tips)
Comparative Analysis of Door Materials and Installation Metrics
Choosing the right material impacts long-term maintenance, thermal performance, and capital outlay. The following table contrasts uPVC installations with alternative material options commonly specified in contemporary construction projects.
| Material Profile | Average Thermal Transmittance (U-Value) | Typical Lifespan | Maintenance Requirements | Primary Installation Challenges |
|---|---|---|---|---|
| uPVC | 1.0 to 1.4 W/m²K | 25 to 35 Years | Minimal (Wiping with soapy water) | Susceptible to thermal bowing if tightly fixed without expansion gaps. |
| Composite | 0.8 to 1.2 W/m²K | 30 to 40 Years | Very Low | Heavy leaf weight requires robust, multi-screw reinforced hinges. |
| Timber | 1.4 to 1.8 W/m²K | 40 to 60+ Years | High (Periodic sanding, staining, or painting) | Requires meticulous sealing against moisture absorption to prevent warping. |
| Aluminium | 1.4 to 1.6 W/m²K | 45+ Years | Low | High thermal conductivity requires internal thermal break technology. |
Troubleshooting Common Installation Deficiencies
Even experienced fitters encounter structural discrepancies. Addressing these issues immediately prevents long-term weatherproofing failures and mechanical malfunctions.
- Door Sags or Binds on the Threshold: This typically indicates insufficient packing beneath the hinge jamb or settlement of the subfloor. Remedy this by removing the hinge cover caps, loosening the retaining screws, and lifting the leaf using the vertical adjustment hex screw until clearance is restored.
- Drafts Around the Perimeter Seals: If air leaks past the weatherstripping, the compression is likely set too loose. Adjust the cam rollers using an Allen key or torx driver to increase gasket pressure against the frame.
- Condensation Within the Double-Glazed Units: While not an installation error per se, seal failure in factory-glazed uPVC panels requires complete unit replacement. Ensure that internal drainage slots (weep holes) at the bottom of the outer frame remain unobstructed by silicone or masonry debris.
Frequently Asked Questions
What is the ideal clearance gap required around a uPVC door frame during installation?
A functional clearance gap of 5mm to 10mm should be maintained around all outer edges of the frame. This allowance accommodates minor masonry irregularities and allows for thermal expansion and contraction during extreme seasonal temperature shifts.
How do you fix a uPVC door that fails to lock properly?
Locking failures usually stem from frame misalignment rather than a broken mechanism. Adjust the hinge lateral and vertical alignment screws to center the door leaf, ensuring the locking hooks and deadbolts engage effortlessly into the keep plates without excessive force.
Can a uPVC door be trimmed down if the aperture is too small?
No, uPVC profiles cannot be planed or trimmed like timber doors. Removing material from a uPVC profile compromises its internal steel reinforcement chambers and structural integrity, requiring an accurate re-measurement and re-ordering of a correctly sized frame.
Is expanding foam sufficient to secure a uPVC door frame?
Expanding foam must never be used as the primary structural anchor for a door frame. Mechanical fixings such as concrete screws or frame anchor bolts are mandatory, with low-expansion foam serving strictly as a thermal and acoustic insulation barrier.
What regulatory building standards apply to replacement exterior doors?
Exterior door installations must comply with local building regulations governing thermal performance (U-values), emergency egress requirements, safety glass specifications in critical zones, and weather-tightness against driving rain.
Ensure your property achieves maximum energy efficiency, heightened security, and enduring structural performance by planning every phase of your project meticulously. Professional execution protects your investment and delivers reliable operation for decades.
