U.S. General Tool Box Parts Guide: Maintenance And Replacement Manual For 2026

U.S. General tool boxes, widely distributed through major automotive and hardware retailers like Harbor Freight, have earned a reputation among professional mechanics and DIY enthusiasts for offering exceptional structural integrity at an accessible price point. Whether you own a Series 1, Series 2, or the heavily upgraded Series 3 rolling cabinet, top chest, or end locker, the hardware eventually experiences wear. Finding the correct replacement components, understanding structural layouts, and executing precise maintenance ensures that your storage investment lasts for decades. This guide provides a comprehensive breakdown of sourcing, identifying, and installing official and compatible replacement parts for your U.S. General storage systems in 2026.

Identifying Your U.S. General Tool Box Generation and Series

Before sourcing any replacement hardware, you must accurately identify the exact generation and series of your storage unit. U.S. General has undergone significant manufacturing design iterations, meaning drawer slides, casters, lock cylinders, and trim pieces are rarely interchangeable across different generations.

• Series 1 Systems: The legacy generation characterized by traditional latching mechanisms, lighter-gauge steel compared to modern units, and simpler tubular lock designs. Sourcing parts for Series 1 often requires aftermarket compatibility or salvaged components since direct factory support is limited.
• Series 2 Systems: Introduced widespread popularity with heavy-duty ball-bearing slides, lift-latch drawer pulls, and a wider array of color choices (red, black, blue, yellow, green, orange, and gray). These units feature standardized mounting patterns that made DIY repairs much easier.

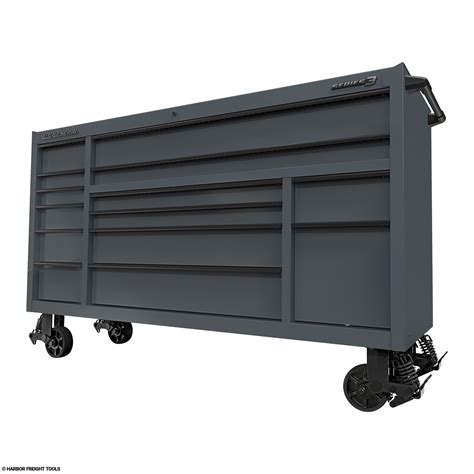

• Series 3 Systems: The current standard featuring heavy-gauge steel construction, integrated power strips on select models, heavy-duty industrial casters, upgraded soft-close or positive-latching mechanisms, and modular end locker compatibility. Series 3 parts are heavily supported directly through customer service channels and authorized parts distributors.

Comprehensive Catalog of Essential U.S. General Replacement Parts

Tool storage failures typically concentrate on moving parts. Knowing the exact terminology for these components simplifies the warranty claim or purchasing process.

• Drawer Slides: Full-extension ball-bearing slides handle the highest mechanical stress. Overloading drawers beyond weight capacity leads to ball bearing displacement and bent slide rails.
• Casters: Heavy-duty swivel and rigid casters support the entire dynamic weight of the loaded cabinet. Upgrading to polyurethane wheels is a common modification for rough shop floors.
• Lock Cylinders and Keys: Tubular lock cores secure your valuable hand and pneumatic tools. Lost keys or jammed cylinders require code-matched replacements.
• Lift-Latch Handles: Aluminum or composite drawer pulls featuring the patented release bar that prevents drawers from sliding open during transport.
• Trim and Corner Guards: Plastic or rubber protective bumpers that shield the exterior edges of rolling cabinets from accidental impact with vehicles and shop equipment.

Step-by-Step Guide to Replacing Drawer Slides and Hardware

Failing drawer slides manifest as binding, sagging, or complete detachment under heavy loads like sockets and wrenches. Replacing them safely requires methodical disassembly.

Safety First: Always empty the affected drawer and any drawers positioned above it to prevent the cabinet from tipping forward due to a shifted center of gravity. Never work on an unlevel surface with the cabinet casters unlocked.

1. Empty and Remove the Drawer: Pull the drawer out to its maximum extension. Locate the black plastic release levers on both sides of the slide mechanism. Push up on the left lever and down on the right lever simultaneously, then pull the drawer straight out of the cabinet.
2. Inspect the Cabinet and Drawer Rails: Examine both the slide mounted to the interior cabinet wall and the member attached to the drawer chassis. Check for stripped mounting screws or warped steel channel tracks.
3. Unbolt Damaged Slides: Using a stubby Phillips screwdriver or a 10mm nut driver (depending on the specific manufacturing run), remove the machine screws securing the slide to the cabinet wall and the drawer side. Keep track of fastener locations, as thread pitches can vary between internal structural frames and outer skins.
4. Install New Replacement Slides: Align the new OEM slide with the pre-drilled factory mounting holes. Hand-thread all screws before final tightening to ensure proper alignment and prevent binding.
5. Mount and Test the Drawer: Carefully align the drawer rail members with the intermediate cabinet channels. Push the drawer inward until you hear a distinct click, indicating that the ball-bearing carriage has re-engaged. Test the travel smoothness through multiple full-extension cycles.

Factory OEM Parts vs. Aftermarket Alternatives Comparison

When sourcing components, technicians often weigh the benefits of buying direct factory replacements against universal aftermarket hardware.

Troubleshooting Common U.S. General Tool Box Issues

Diagnostic accuracy saves time and prevents unnecessary component purchases.

• Drawer Binds Midway: This indicates foreign debris inside the ball-bearing track or a slightly bent drawer flange. Clean the tracks with a solvent-soaked rag, inspect for grit, and lubricate lightly with a dry PTFE spray. Avoid heavy greases that attract metallic dust and shop dirt.
• Caster Wobble or Noise: Loose mounting bolts are the primary culprit. Tip the cabinet securely (with assistance) and torque all caster mounting bolts to specification. Replace deformed bearings immediately to prevent structural floor damage.
• Key Sticking in Cylinder: Spray a small amount of powdered graphite or electronic contact cleaner into the keyway. Never use wet penetrating oils inside lock cylinders, as they gum up tumbler springs over time.

Frequently Asked Questions

How do I order replacement parts for my U.S. General tool box?

You can order official replacement parts by contacting customer service directly via phone or through the customer support portal provided by the retail distributor. Having your tool box series number, receipt, and exact part description ready accelerates the fulfillment process.

Are Series 2 and Series 3 drawer slides interchangeable?

No, Series 2 and Series 3 boxes utilize different slide mounting dimensions, latch styles, and depth configurations. Always verify your specific series number before purchasing replacement slides.

What is the weight capacity of a standard U.S. General Series 3 drawer?

Series 3 drawers are engineered to support heavy loads, typically ranging from 100 lb to over 200 lb per drawer depending on whether single or double slides are utilized. Always distribute heavy items evenly across the drawer floor to prevent slide distortion.

Can I upgrade my rolling cabinet with larger casters?

Yes, many users upgrade to heavy-duty industrial casters to increase ground clearance or mobility over rough thresholds. Ensure the replacement caster top plate matches the existing bolt pattern or utilize a steel adapter plate.

How do I find the serial number on my U.S. General storage unit?

The serial number and manufacturing batch data are located on a silver or black metallic data badge riveted to the rear exterior panel of the rolling cabinet or top chest.

What lubricant should I use on tool box drawer slides?

Use a dry silicone or PTFE-based spray lubricant to keep ball bearings moving freely without attracting conductive metal shavings and shop grit.

Maximizing the lifespan of your U.S. General tool storage system relies on proactive maintenance and prompt replacement of damaged hardware. By correctly identifying your box series and utilizing proper installation techniques, your investment will continue protecting your tools reliably for years to come.
