Master The AC Manifold Gauge Set: Step-by-Step HVAC Diagnostics & Charging Guide

Connecting and operating an air conditioning manifold gauge set requires systematic hookups to system service valves, accurate pressure-to-temperature (P-T) conversions, and strict adherence to EPA refrigerant containment protocols. By evaluating low-side suction pressures alongside high-side discharge pressures, technicians can precisely calculate superheat and subcooling values to diagnose system charge levels, restrictions, or mechanical compressor failures.

HVAC Pre-Operation Safety Standards & Equipment Checklist

Operating an analog or digital AC manifold gauge set demands a working understanding of thermodynamic principles, system pressure ranges, and EPA Section 608 refrigerant handling regulations. Before tapping into any pressurized air conditioning or refrigeration circuit, assemble the proper tools and safety gear to prevent liquid refrigerant frostbite burns, oil contamination, or non-condensable gas introduction into the system.

Required Equipment & Diagnostic Gear

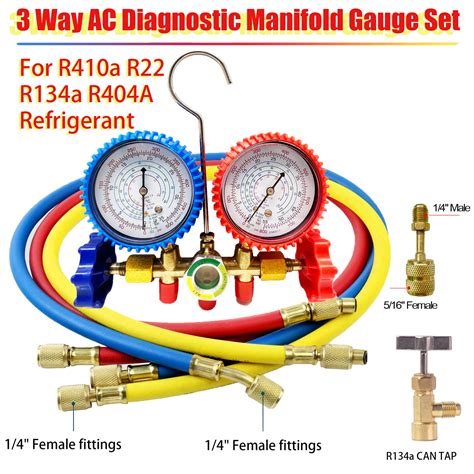

• AC Manifold Gauge Set: 2-valve or 4-valve brass/aluminum manifold equipped with compound low-pressure (blue) and high-pressure (red) gauges rated for target refrigerants (e.g., R-134a, R-410A, R-22, R-454B).
• Refrigerant Hoses: Heavy-duty, high-pressure rated hoses with manual or automatic shutoff low-loss anti-blowback fittings (Blue: Suction, Red: Liquid/Discharge, Yellow: Utility/Vacuum/Refrigerant Tank).
• Digital Pipe-Clamp Thermocouples: Two calibrated temperature clamps for measuring actual line temperatures on liquid and suction lines.
• Pressure-Temperature (P-T) Chart: Physical chart, slide rule, or digital mobile application matched to the specific refrigerant inside the circuit.
• Personal Protective Equipment (PPE): ANSI Z87.1-approved safety glasses/goggles and thermal/chemical-resistant gloves (nitrile-coated or leather work gloves).
• Auxiliary Vacuum Pump & Digital Micron Gauge: Required if evacuating air and moisture down to 500 microns prior to system charging.

Mandatory Standards & Project Metrics

• Safety Compliance: EPA Section 608 certification (Type I, II, III, or Universal) for handling closed refrigerant loops. Zero-venting rules strictly prohibit deliberate venting of fluorinated refrigerants.
• Estimated Hookup & Diagnostic Duration: 15 to 30 minutes for static/running pressure reads; 1 to 2 hours if performing evacuation and recovery/charging operations.
• Equipment Calibration Standard: Mechanical gauge needles must be manually zeroed to atmospheric pressure (0 PSIG) via the faceplate adjustment screw prior to attachment.

Technical Step-by-Step Gauge Connection & Diagnostic Workflow

Step 1: Zero Mechanical Gauges and Inspect Hose Assemblies

Before connecting to any service ports, verify that both the low-side manifold hand valve (blue) and high-side manifold hand valve (red) are fully closed (turned clockwise until snug). Inspect the neoprene seals and depressor pins inside the 1/4-inch SAE flare (or 1/2-inch ACME) hose ends for cracking, wear, or missing O-rings.

Remove the front protective glass lens covers if necessary and use a flathead screwdriver to turn the needle adjustment screw until both gauge pointers rest precisely over the 0 PSIG mark at ambient pressure.

Warning: Never connect a manifold gauge set with damaged hose gaskets or uncalibrated needles. Ruptured hoses under high pressure (which can exceed 400 PSIG on R-410A systems) pose immediate chemical burn and eye injury risks.

Step 2: Attach Manifold Hoses to System Service Ports

Locate the air conditioning system service valves:

• Low-Side Port: Located on the larger, insulated suction line coming from the evaporator coil leading into the compressor. Connect the Blue Hose.
• High-Side Port: Located on the smaller, uninsulated liquid line coming out of the condenser coil leading toward the metering device. Connect the Red Hose.

For automotive R-134a systems, push the quick-connect couplers onto the matching ports and rotate the knurled knob clockwise to depress the Schrader valve core. For residential split systems, thread the low-loss hose fittings onto the Schrader ports tightly to prevent minor refrigerant loss during connection. Keep both manifold hand valves firmly closed to isolate the system pressure within the manifold body.

Pro-Tip: If using a standard 3-port manifold, ensure the yellow utility hose is safely capped or connected to an isolated park lug to keep dirt and atmospheric moisture from entering the center block manifold passage.

Step 3: Record Static Pressures and Evaluate Ambient Balance

With the air conditioning compressor turned OFF, observe both gauge dials. Allow 3 to 5 minutes for internal manifold pressure to equalize across the gauge faces.

In a dormant system, the high-side and low-side pressures will balance out to an identical reading. Cross-reference this static pressure with a P-T chart using the outdoor ambient air temperature. If static pressure is significantly lower than the saturated pressure corresponding to the ambient temperature, the system has lost a substantial portion of its charge through an active leak.

Step 4: Initiate Dynamic System Operation and Monitor Running Pressures

Turn on the indoor blower fan and power up the outdoor condensing unit or automotive AC compressor. Allow the system to run continuously for 10 to 15 minutes until thermodynamic equilibrium is achieved across both coils.

Observe the gauge needles:

1. Low-Side Gauge (Blue): Measures evaporating pressure (suction line pressure). This reflects heat absorption in the indoor evaporator coil.
2. High-Side Gauge (Red): Measures condensing pressure (discharge/liquid line pressure). This reflects heat rejection at the outdoor condenser coil.

Pro-Tip: Pay close attention to needle stability. Rapid, severe needle flutter indicates a failing compressor valve plate, unstable metering device hunting, or internal pressure pulsation.

Step 5: Calculate Superheat and Subcooling for System Tuning

To accurately assess refrigerant level and system health, do not rely on pressure readings alone. Convert system pressures into saturation temperatures and calculate superheat or subcooling:

• Superheat Calculation (Fixed Orifice / Piston Systems):




  1. Read suction pressure on the blue gauge.
  2. Find the corresponding Evaporator Saturation Temperature on the blue gauge dial or P-T chart.
  3. Attach a temperature clamp to the suction line near the service port to obtain the Actual Suction Line Temperature.
  4. Formula: Superheat = Actual Suction Line Temperature - Evaporator Saturation Temperature.
  5. Target nominal superheat is typically between 8°F and 18°F depending on indoor wet-bulb and outdoor dry-bulb temperatures.

• Subcooling Calculation (Thermal Expansion Valve / TXV Systems):




  1. Read liquid pressure on the red gauge.
  2. Find the corresponding Condenser Saturation Temperature on the red gauge dial or P-T chart.
  3. Attach a temperature clamp to the liquid line near the service port to obtain the Actual Liquid Line Temperature.
  4. Formula: Subcooling = Condenser Saturation Temperature - Actual Liquid Line Temperature.
  5. Target nominal subcooling is typically specified on the unit manufacturer data plate (commonly 8°F to 14°F).

Step 6: Safely Disconnect the Manifold Gauge Set

Disconnecting hoses while pressurized can vent trapped liquid refrigerant into the atmosphere and deplete oil from the system. Execute a controlled recovery/purge procedure:

1. System must be running. Close the high-side coupler valve or disconnect the red high-side hose from the service valve first.
2. Slowly open both the high-side (red) and low-side (blue) manifold hand valves on the gauge block simultaneously.
3. This allows the compressor to pull the high-pressure liquid refrigerant trapped inside the red hose and manifold body through the yellow/blue circuit back into the low-pressure suction side of the system.
4. Once high and low gauge needles equalize near suction pressure, close both manifold hand valves.
5. Disconnect the low-side (blue) hose coupler from the suction service valve. Re-seat all protective valve stem caps securely.

Refrigerant Operating Pressure & Temperature Reference Specs

The table below provides baseline running operating parameters under standard testing conditions: 80°F (26.7°C) Outdoor Ambient Temperature with normal indoor airflow.

Diagnostic Pressure Patterns & Field Remedies

Scenario 1: Low Suction Pressure and High Superheat

• Root Cause: Insufficient refrigerant charge (system leak) or severe liquid line metering device restriction (e.g., plugged filter drier or clogged TXV inlet screen).
• Actionable Fix: Perform an electronic bubble leak search or nitrogen pressure test to find and repair structural leaks. If no leaks are present, check temperature drop across the filter drier. A temperature drop exceeding 2°F indicates a internal restriction requiring drier replacement.

Scenario 2: High Suction Pressure and Low Discharge Pressure

• Root Cause: Inefficient or mechanically failing compressor. Broken internal reed valves, worn scroll wraps, or a leaking internal bypass valve prevent the compressor from building a adequate pressure differential.
• Actionable Fix: Perform a compressor pump-down test or amp-draw check against manufacturer performance curves. If running amperage is significantly below rated load amps (RLA) while pressures remain equalized, replace the compressor assembly.

Scenario 3: High Discharge Pressure and Normal-to-High Subcooling

• Root Cause: Condenser airflow obstruction (dirty condenser fins, failed outdoor fan motor) or an overcharged refrigerant circuit.
• Actionable Fix: Clean outdoor condenser coils with proper foaming coil cleaner and check fan motor capacitor performance. If airflow is clear and high-side pressure remains elevated with abnormally high subcooling (> 20°F), recover excess refrigerant into an EPA-approved cylinder until target subcooling is restored.

Scenario 4: Low Suction Pressure Dropping into a Vacuum

• Root Cause: Complete restriction at the expansion device or frozen indoor evaporator coil due to severe air restriction (clogged air filter, collapsed ductwork).
• Actionable Fix: Turn off cooling, switch thermostat fan to ON, and thaw the evaporator coil completely. Check return air filter and blower wheel cleanliness. If airflow is unrestricted, replace the frozen/stuck thermal expansion valve (TXV).

Frequently Asked Questions

Can I use an R-134a manifold gauge set on an R-410A system?

No, standard R-134a manifold gauges and hoses are not rated for the significantly higher working pressures of R-410A. R-410A operates at pressures up to 60% higher than R-134a or R-22, which can burst low-pressure hoses or blow out internal gauge Bourdon tubes.

What is the difference between a 2-port and a 4-port manifold gauge set?

A 2-port manifold features two hand valves and three hose connections (Low, High, Utility), requiring you to swap hoses when switching between a vacuum pump and a refrigerant tank. A 4-port manifold features dedicated 3/8-inch vacuum line ports and separate charging ports, allowing technicians to evacuate and charge without changing hose connections.

Why does my low-side pressure drop into a vacuum while running?

A system pulling into a vacuum on the low side during compressor operation signals a severe liquid-line or expansion-device blockage (such as an ice plug or failed TXV) that prevents refrigerant from feeding back into the evaporator coil.

How do I purge non-condensables (air) from my manifold hoses before charging?

When connecting a refrigerant cylinder to the center utility hose, crack open the hose fitting at the manifold bar for 1-2 seconds while supplying low-pressure refrigerant gas from the tank. This sweeps atmospheric air out of the hose before you open the manifold hand valves to feed refrigerant into the HVAC system.
