How To Use A Home Doppler: A Comprehensive Guide For Fetal Heart Rate Monitoring
A home fetal doppler uses ultrasound transducers to detect the movement of blood and cardiac valves within the fetal heart, providing an audible representation of the fetal heartbeat. Success requires the application of conductive ultrasound gel, precise positioning over the lower abdomen, and the patience to distinguish fetal signals from maternal arterial flow.
Preparing for Successful Fetal Heart Rate Detection
Using a fetal doppler is a mechanical procedure that relies on the physics of ultrasonic waves reflecting off moving targets. Before attempting to capture a heartbeat, ensure you have the necessary equipment calibrated and your environment prepared to minimize external interference. The process typically takes between 5 to 15 minutes for beginners.
- Essential Equipment: A handheld fetal doppler unit with a probe (typically 2MHz or 3MHz), a fresh bottle of water-based, hypoallergenic conductive ultrasound gel, and a quiet, comfortable environment.
- Prerequisite Knowledge: Fetal heart rates generally range from 110 to 160 beats per minute (BPM). Understanding that the fetal heart sound is significantly faster than maternal pulses—which typically range from 60 to 100 BPM—is vital for accurate identification.
- Environmental Standards: Perform the scan in a reclined, semi-supine position to allow for easier access to the pelvic area. Ensure the area is free from electronic interference by keeping mobile devices at a distance, as these can create static or white noise that masks the fetal signal.
- Safety and Standards: Always use water-soluble transmission gel. Using oils, lotions, or plain water will create air pockets that obstruct sound wave penetration, leading to failure in signal acquisition.
The Systematic Procedure for Operating Your Fetal Doppler
Achieving a consistent signal requires a structured approach to probe placement and movement. The following steps outline the mechanical process of ultrasound transmission and reception.

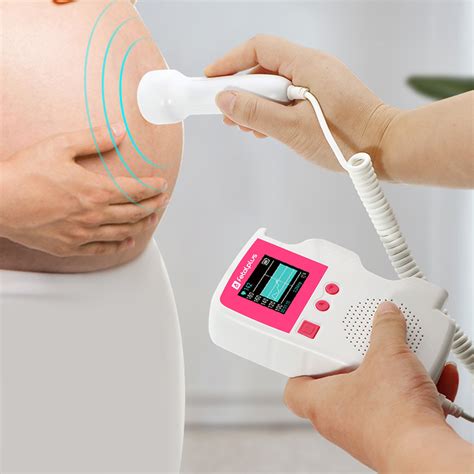

Step 1: Positioning and Initial Gel Application
Begin by lying on your back with a pillow under your head to maintain comfort, while ensuring your lower abdomen is exposed. Apply a generous, coin-sized amount of ultrasound gel just above the pubic bone. The gel acts as the conductive medium; without it, the ultrasound waves will be blocked by the thin layer of air between the probe and your skin.
Step 2: Positioning the Transducer
Place the probe onto the gel-covered area at a 45-degree angle. Start low, just above the pubic hairline. It is common for the fetus to be located near the bladder in the early second trimester, so the starting point must be as low as possible.
Pro-Tip: Angle the probe slightly toward your pelvis rather than straight down. This helps the ultrasound beam penetrate the uterine wall at an angle that is more likely to intercept the fetal heart.
Step 3: Executing the Systematic Sweep
Move the probe in a slow, circular, or side-to-side sweeping motion. Do not press too hard, as excessive pressure can move the fetus away or cause discomfort. If you do not hear a heartbeat immediately, move the probe incrementally by one centimeter at a time. If you reach the navel without success, return to the pubic bone and adjust the angle of the probe slightly.
Warning: Never spend more than 10 to 15 minutes on a single session. Excessive or prolonged exposure to ultrasound, even at home-use levels, is not recommended by medical organizations. If you cannot find the heart rate, stop and try again at a later time.
Step 4: Identifying and Validating the Signal
Listen carefully to the rhythm. The fetal heartbeat is often described as the sound of a galloping horse. Use the unit's digital display if available, but prioritize the audio rhythm. If you hear a rhythmic "whooshing" sound, you are likely picking up the placenta or the maternal aorta. These are much slower and correspond to your own pulse. Continue hunting until you find the significantly faster, distinct double-beat sound.
Best At-home Fetal Dopplers Reviewed - Review For Mum
Comparative Specifications of Doppler Technology
Understanding the technical differences between various ultrasound frequencies is essential for identifying the right tool for different stages of pregnancy.
| Specification | 2MHz Probe | 3MHz Probe |
|---|---|---|
| Penetration Depth | Higher (Deep Tissue) | Lower (Superficial) |
| Best Usage | Later Pregnancy / Higher BMI | Early Pregnancy (10-14 weeks) |
| Signal Sensitivity | Moderate | High |
| Optimal Application | Third Trimester | First/Second Trimester |
Troubleshooting Common Signal Acquisition Errors
Inaccurate readings or complete silence often stem from external factors or misinterpretation of biological sounds. Address these common failures systematically to improve your results.
- Static or Loud Interference:
- Root Cause: The probe is not making full contact with the skin, or there is an air bubble trapped in the gel.
- Actionable Fix: Apply more gel and ensure the probe is held flush against the skin without tilting. Keep the unit away from laptops or routers.
- Difficulty Distinguishing Fetal Pulse from Maternal Pulse:
- Root Cause: Confusing the maternal artery or placenta blood flow with the fetal heart.
- Actionable Fix: Check your own pulse simultaneously. If the sound on the doppler matches your pulse, you are hearing your own blood flow. Move the probe to a different quadrant of the abdomen to search for the fetal heartbeat.
- Total Silence or Missing Signal:
- Root Cause: The fetus may be in a posterior position or the gestation is too early for the specific frequency of the probe.
- Actionable Fix: Drink a glass of cold water or have a snack to encourage fetal movement. Ensure the batteries in the unit are fully charged or replaced, as low voltage can significantly reduce the sensitivity of the transducer.
Frequently Asked Questions
At how many weeks can I expect to hear the heartbeat?
Most home dopplers are designed to detect a heartbeat between 12 and 14 weeks of pregnancy. Before this period, the uterus is still deep within the pelvic cavity, and the fetal heart is too small to provide a consistent reflection for consumer-grade ultrasound equipment.
Can a home doppler replace professional prenatal checkups?
No, a home doppler is for recreational use only and is not a clinical diagnostic tool. It cannot assess fetal health, umbilical cord flow, or amniotic fluid levels, which are critical components of professional prenatal visits.
Is it safe to use the doppler every day?
While there is no documented evidence of harm from short-term usage, medical experts recommend limiting use to short, infrequent sessions. Over-reliance can lead to unnecessary anxiety if the heart rate is difficult to locate, which does not necessarily indicate a medical emergency.
Why does the heart rate display keep changing?
Fetal heart rates fluctuate naturally based on fetal activity, movement, and sleep cycles. Additionally, if the doppler is picking up maternal blood flow or background noise, the digital algorithm may struggle to calculate a steady beat, leading to jumping or inaccurate numerical values.
Should I consult a doctor if I cannot find the heartbeat?
If you have reached the stage of pregnancy where you are typically able to hear the heartbeat but suddenly cannot, do not panic, as the fetus may have moved into a position that obstructs the signal. However, if you have concerns regarding fetal movement or overall wellbeing, contact your healthcare provider immediately to schedule a professional assessment.
Ensure your prenatal journey is supported by professional clinical oversight while utilizing your home equipment for personal connection. Schedule your next routine ultrasound with your obstetrician to confirm all developmental milestones are being met with diagnostic accuracy.
