The Master Guide To Installing Sawtooth Hangers For Professional Picture Framing
Installing sawtooth hangers requires precise structural alignment to prevent wall damage and ensure frames remain level. By identifying the center of gravity, selecting the correct fastener for your wall substrate, and maintaining consistent spacing, you achieve a flush, professional-grade wall mount that supports standard decorative art and mirrors securely.
Essential Preparation and Technical Requirements
Successful installation depends on matching the hardware to the frame composition and the wall substrate. Sawtooth hangers are best suited for lightweight to medium-weight frames, typically under 10 pounds. Using them on heavy, ornate frames or glass-fronted pieces that exceed weight thresholds risks fastener pull-out and catastrophic frame failure.
- Essential Tools: Measuring tape (with 1/32-inch precision), carpenter’s level, pencil with a sharp tip, hammer or power drill with a fine bit, and a soft-headed mallet.
- Hardware Selection: Standard sawtooth hangers come in steel or zinc-plated varieties. Choose ribbed or serrated hangers for better grip if you are installing into softwood or composite frames. Ensure your mounting nails match the frame depth to prevent the nail tip from puncturing the front surface of the frame.
- Prerequisite Knowledge: You must understand the difference between tension-based holding and shear-force limitations. Sawtooth hangers rely on the wall nail to carry the vertical load and friction to prevent lateral sliding.
- Budget and Duration: Total cost for hardware is negligible, usually under five dollars per kit. The procedure typically requires 10 to 15 minutes of focused labor, including marking and alignment.
Procedural Workflow for Precision Mounting
Step 1: Determining the Center of Gravity
Before attaching the hardware, identify the exact horizontal midpoint of the frame’s top rail. Measure the total width of the frame and divide by two. Mark this center point with a light pencil mark on the rear frame profile. If your frame is an irregular shape, verify the center of gravity by balancing the frame on a thin edge; the point where it balances without tipping is your vertical centerline.
Pro-Tip: Always install the hanger as close to the top edge of the frame as possible to minimize the tendency of the frame to tilt forward away from the wall.
Step 2: Hanger Positioning and Pilot Drilling
Center the sawtooth hanger over your mark. If your frame is made of hardwood, you must pre-drill pilot holes. Use a bit that is slightly smaller than the diameter of the provided nails to prevent wood splitting. Align the hanger so the teeth point downward, which allows for micro-adjustments once the frame is on the wall.
Warning: Check the depth of the frame rail before driving any fasteners. If the frame is thinner than the length of the nail, you risk damaging the frame face and ruining the aesthetics of your art.
Step 3: Fastening the Hardware
Position the hanger, ensuring it is perfectly parallel to the top edge of the frame. Use a hammer to drive the nails provided in the kit. If using a multi-nail hanger, drive the nails in a sequence that alternates sides to ensure even tension and prevent the hanger from shifting during the process. Ensure the hanger is flush against the wood surface; any gap will cause the frame to sit loosely on the wall.
Step 4: Measuring and Installing the Wall Hook
Measure the distance from the top of the frame to the center of the sawtooth slot. Transfer this measurement to the wall. Use a bubble level to ensure your wall marks are perfectly horizontal. Hammer your wall nail or mounting hook at this exact height. If the frame is wide, consider using two nails on the wall to provide additional stabilization against accidental bumps.

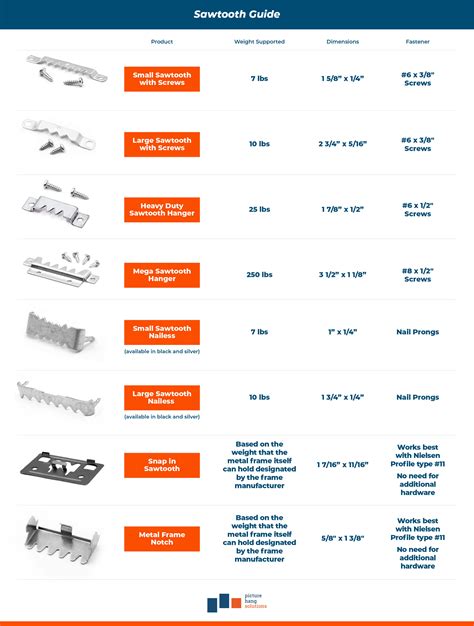

Sawtooth Hangers Buyer Guide - Picture Hang Solutions
Technical Comparison of Hanging Hardware
| Hardware Type | Ideal Load Capacity | Best Substrate | Installation Complexity |
|---|---|---|---|
| Sawtooth Hanger | Up to 10 lbs | Wood Frames | Low |
| D-Ring Hooks | 10 – 30 lbs | All Frames | Moderate |
| Wire System | 20 – 50 lbs | Large/Heavy Frames | Moderate |
| Z-Bar Cleat | 50+ lbs | Large/Wide Art | High |
Resolving Common Installation Failures
- Root Cause: The frame sits crooked on the wall. The sawtooth hanger is likely not perfectly centered, or the wall nail is not level.
- Actionable Fix: Use the serrated nature of the hanger to shift the frame left or right on the nail head until the spirit level indicates true horizontal alignment.
- Root Cause: The frame tilts forward significantly. The hanger is positioned too far down the frame rail, creating a fulcrum point that pulls the top of the frame away from the wall.
- Actionable Fix: Relocate the hanger to the absolute top edge of the frame or attach small felt furniture pads to the bottom corners of the frame back to create a standoff buffer.
- Root Cause: The nail pulled out of the frame wood. The frame material is too soft, or the wood has aged and become brittle.
- Actionable Fix: Fill the damaged nail hole with wood filler, allow it to cure, and relocate the hanger slightly to the left or right, ensuring you use wood screws instead of nails for a higher-strength mechanical bond.
Frequently Asked Questions
Can I use a sawtooth hanger for a heavy mirror?
No, sawtooth hangers are generally not rated for heavy mirrors or frames with thick glass. For items exceeding 10 pounds, utilize D-rings or heavy-duty wire systems, as these distribute weight more effectively and minimize the risk of hardware fatigue.
What should I do if my frame is too thin for the provided nails?
If the provided nails are longer than the frame thickness, you should purchase shorter, high-quality wood screws or shorter brad nails. Always prioritize the integrity of the frame's finish by ensuring fasteners do not protrude through the front.
How do I ensure my picture stays level?
To prevent the frame from shifting, use two wall nails spaced slightly apart. This creates a wider base of support, preventing the frame from rotating on a single point of contact when bumped.
Is it necessary to use a pilot hole for sawtooth hangers?
While not always strictly required, using a pilot hole is best practice to avoid splitting the wood, especially when working with dense hardwoods or thin picture frame moldings. A pilot hole ensures the nail or screw drives straight without wandering.
