How To Charge The Vision Spinner 2: The Definitive Guide To Battery Maintenance And Safety

To charge a Vision Spinner 2, screw the 1650mAh battery into a dedicated 510-threaded USB charger with a 4.2V output, ensuring the fire button flashes to signal a connection. A full charge cycle typically requires 5 to 6 hours, indicated by the USB charger’s LED transitioning from red to solid green while the battery's internal LED turns off.

Pre-Charging Requirements and Hardware Verification

Before initiating a charge cycle on a Vision Spinner 2, understanding the hardware's specific electrical requirements is vital for both safety and the longevity of the 1650mAh lithium-ion cell. This device utilizes a standard eGo/510 threading, but its high-capacity internal battery demands consistent amperage to avoid "ghost charging"—a state where the charger indicates completion despite the cell being partially empty.

Essential Equipment Checklist

To ensure a successful and safe charging process, verify you have the following components:

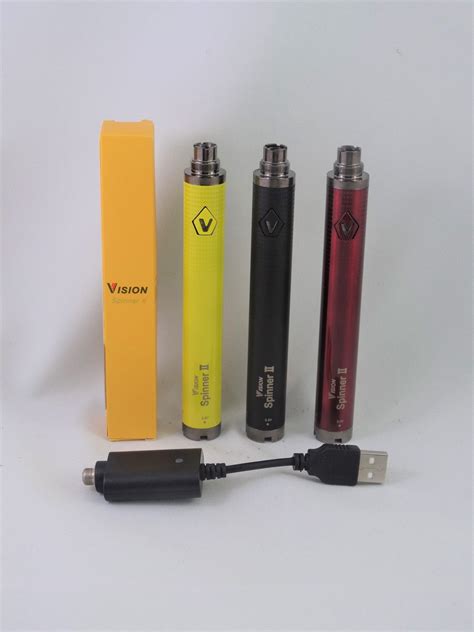

• Primary Hardware: An authentic Vision Spinner 2 Variable Voltage Battery (1650mAh).
• Dedicated Charger: A 510-threaded USB charger. The output must be rated at 4.2V and approximately 420mA. Using a charger with higher voltage can damage the internal PCB (Printed Circuit Board).
• Wall Adapter: A standard AC-to-USB wall adapter is recommended over a computer USB port. Ensure the wall adapter does not exceed 1.0A (1000mA) output to prevent overheating.
• Maintenance Tools: Isopropyl alcohol (91% or higher) and a cotton swab for cleaning the contact pins.
• Operational Benchmarks:


  • Estimated Duration: 5 to 6 hours for a full cycle.
  • Cycle Life: 300 to 500 full charge/discharge cycles before capacity degradation occurs.
  • Budget: Replacement chargers typically range from $5 to $12; high-quality wall adapters range from $10 to $20.

Operational Workflow for Charging the Vision Spinner 2

Successfully charging the Vision Spinner 2 involves more than simply plugging it in. Because these devices rely on physical contact between the center pins of the battery and the charger, the preparation of these surfaces determines the efficiency of the power transfer.

Step 1: Interface Cleaning and Preparation

The most common cause of charging failure is residue buildup on the battery's contact point. E-liquid or dust can create a layer of resistance that disrupts the electrical circuit.

1. Dampen a cotton swab with isopropyl alcohol.
2. Gently scrub the circular center pin inside the 510 threading of the Vision Spinner 2.
3. Clean the corresponding gold or silver-plated pin on the USB charger.
4. Allow both components to air-dry for 30 seconds before proceeding.

Step 2: The Physical Connection Sequence

The Vision Spinner 2 features a spring-loaded or slightly floating center pin. Over-tightening the charger can depress this pin permanently, leading to connectivity issues.

1. Align the threads of the battery with the charger.
2. Rotate the battery clockwise until you feel light resistance.
3. Turn the battery an additional 1/8th of a turn. It should be "finger-tight," not forced.
4. Observe the fire button on the Vision Spinner 2; it should flash (typically 3 to 5 times) to acknowledge the connection to the charging circuit.

Step 3: Powering the Circuit

Once the battery is attached to the USB dongle, connect the USB end to your power source.

1. Insert the USB plug into a wall adapter or a powered USB hub.
2. Observe the LED indicator on the USB charger dongle. It should immediately turn Red, indicating that current is flowing into the battery.
3. The fire button on the Vision Spinner 2 will usually stay illuminated (often in white, blue, or orange depending on the current charge level) while the charging process is active.

Pro-Tip: If the fire button does not light up or flash when connected, the center pin of the battery may be pushed down too far. Use a small flathead screwdriver to very gently pry the center pin up by a fraction of a millimeter to restore contact.

Step 4: Monitoring the Charge Progression

The Vision Spinner 2 uses a color-coded LED system to indicate its current power level. While charging, the LED on the button will reflect these stages:

1. White LED: Battery is between 60% and 100% charged.
2. Blue LED: Battery is between 30% and 60% charged.
3. Orange/Red LED: Battery is below 30% and requires immediate charging.

As the battery nears 100%, the LED on the USB charger may begin to flicker between red and green. This is known as "trickle charging," where the charger balances the cells.

Step 5: Disconnection and Safety Check

The charging process is officially complete when the LED on the USB charger stays Solid Green and the LED on the Vision Spinner 2 button turns off completely.

1. Unplug the USB charger from the wall source first.
2. Unscrew the Vision Spinner 2 from the 510 charger.
3. Verify the voltage dial at the bottom of the battery. It is recommended to set the dial to 3.3V or 3.8V after a fresh charge to avoid burning the coil in your tank with a sudden burst of high power.

Warning: Never leave a charging lithium-ion battery unattended overnight or on flammable surfaces like carpets or bedding. Thermal runaway, though rare in authentic Vision Spinner 2 units, is a physical possibility with any damaged or overcharged lithium cell.

Vision Spinner 2 Technical Specifications and Performance Matrix

The following table outlines the critical electrical parameters for the Vision Spinner 2. Adhering to these specifications prevents internal short-circuiting and maximizes the lifespan of the device.

Troubleshooting Vision Spinner 2 Charging Failures

Even with proper care, the Vision Spinner 2 may encounter charging issues due to its mechanical design. Below are the most frequent failure scenarios and their technical remedies.

Scenario 1: The Charger Light Stays Green But Battery is Dead

• Root Cause: The center pin (positive terminal) of the battery has been compressed too deep into the assembly, or there is a "dead spot" in the charger's threading.
• Actionable Fix: Use a toothpick or a small needle to gently lift the circular metal plate inside the battery’s 510 connection. Move around the edges of the circle, lifting it upward by a hair's breadth. This restores the physical connection to the charger.

Scenario 2: The Fire Button Flashes Rapidly (10-15 Times)

• Root Cause: This is a low-voltage warning or a short-circuit indicator. If it happens when you plug it in, the battery is completely depleted (below 3.2V) and the protection circuit is struggling to initiate the charge.
• Actionable Fix: Leave the battery on the charger for at least 30 minutes without checking it. Sometimes the circuit needs a "jump start" at a low amperage before the LED indicators behave normally. If it continues to flash, try a different USB wall adapter (ensure it is 1A or less).

Scenario 3: The Battery Gets Excessively Hot During Charging

• Root Cause: Using a high-amperage "Fast Charger" (e.g., a modern smartphone tablet brick rated at 2.1A or 3A). This forces too much current through the Vision Spinner’s protection board.
• Actionable Fix: Disconnect the battery immediately. Allow it to cool for one hour. Switch to a lower-output power source, such as a laptop USB 2.0 port or a dedicated 500mA wall plug.

Scenario 4: The LED Dial is Stuck or Non-Responsive

• Root Cause: Mechanical debris or internal wire disconnection at the base of the battery.
• Actionable Fix: Gently rotate the dial back and forth across the full range (3.3V to 4.8V) to clear any grit. If the dial spins freely without "clicking" at the voltage markers, the internal stopper is broken, and for safety, the battery should be replaced.

Frequently Asked Questions

How long does the Vision Spinner 2 take to charge?

A fully depleted Vision Spinner 2 (1650mAh) typically takes between 5 and 6 hours to reach 100% capacity. Because of its large capacity compared to standard eGo batteries, it requires significantly more time than smaller 650mAh or 900mAh units.

Can I use my Vision Spinner 2 while it is charging?

No, the Vision Spinner 2 does not support "pass-through" charging. You must disconnect the battery from the USB charging cable before you can attach a tank and use the device. Attempting to fire the device while connected to a charger can damage the internal wiring.

Why does my Vision Spinner 2 stay on orange light for so long?

The orange light indicates the battery is in the lowest tier of its charge (below 30%). Because the initial stage of lithium-ion charging is often the slowest (constant current phase), it may stay orange for 2 hours before transitioning to the blue (mid-range) LED.

How do I know if my Vision Spinner 2 is authentic or a clone?

Authentic Vision Spinner 2 batteries feature a crisp "Vision" logo, a textured metal finish, and a distinct "click" at every voltage setting on the dial. Most importantly, the genuine 1650mAh version is noticeably heavier than clones, which often use lighter, lower-capacity 1000mAh cells inside the same casing.

Should I turn the battery off before charging?

It is a best practice to turn the Vision Spinner 2 off (5 rapid clicks of the fire button) before connecting it to a charger. This ensures that the PCB focuses entirely on power intake rather than maintaining the standby "ready" state, which can slightly improve charging efficiency.

Enhance Your Vaping Experience

Maintaining your Vision Spinner 2 through proper charging cycles ensures a consistent voltage output and a longer device lifespan. For the best performance, always pair your fully charged battery with high-quality atomizers and ensure your connections remain clean and dry.
