How To Wire A 24V Trolling Motor: Step-by-Step Marine Rigging Guide

Wiring a 24V trolling motor requires connecting two 12V deep-cycle marine batteries in series to double the voltage to 24V while maintaining the native amp-hour capacity. This system must be protected by a 50-amp or 60-amp manual reset marine circuit breaker installed on the positive lead within seven inches of the power source to comply with ABYC standards. Utilizing the correct gauge of UL 1426 tinned copper wire prevents critical voltage drop, ensuring your motor delivers maximum thrust and runs safely in harsh marine environments.

Essential System Planning and Marine Gear Checklist

Before stripping wires or purchasing hardware, you must plan your electrical layout according to the American Boat and Yacht Council (ABYC) E-11 standards for AC and DC electrical systems on boats. Unlike terrestrial DC systems, marine electrical grids are subject to constant vibration, high humidity, and corrosive saltwater environments. Standard automotive wire and non-insulated hardware will fail rapidly, leading to high resistance, voltage drops, and potential electrical fires.

To build a reliable 24V system, you must use two identical 12V batteries. Mixing batteries of different ages, capacities, or chemistry types (such as mixing an AGM battery with a flooded lead-acid battery) will cause uneven charging and discharging, leading to premature bank failure. Ensure your selected batteries have matching Amp-Hour (Ah) ratings and reserve capacities.

Required Materials, Tools, and System Benchmarks

• Estimated Budget: $100 to $250 (excluding batteries and the trolling motor itself).
• Time Commitment: 1.5 to 3 hours depending on the complexity of your boat's rigging channels.
• Essential Components:


  • Two 12V deep-cycle marine batteries (AGM, Gel, or Lithium Iron Phosphate).
  • One 12-inch or 18-inch 6 AWG or 8 AWG tinned copper jumper wire (for the series connection).
  • Marine-grade primary wire (red and black) in 6 AWG or 8 AWG (UL 1426 standard).
  • One manual-reset, waterproof marine circuit breaker (50-amp or 60-amp, ignition-protected).
  • Heavy-duty tinned copper ring terminals (sized for 5/16-inch or 3/8-inch battery studs).
  • Adhesive-lined dual-wall polyolefin heat shrink tubing.
  • A high-quality male/female trolling motor plug and receptacle rated for 24V/60A.
• Necessary Tools:


  • Heavy-duty wire cutters and professional terminal crimping tool (lever or hydraulic style).
  • Wire strippers capable of handling large-gauge marine wire.
  • Industrial heat gun or butane torch for shrinking tubing.
  • Digital multimeter for continuity and voltage testing.
  • Socket wrench set with insulated handles.
  • Dielectric grease or marine liquid electrical tape.

Executing the Series Connection: Step-by-Step Wiring Protocol

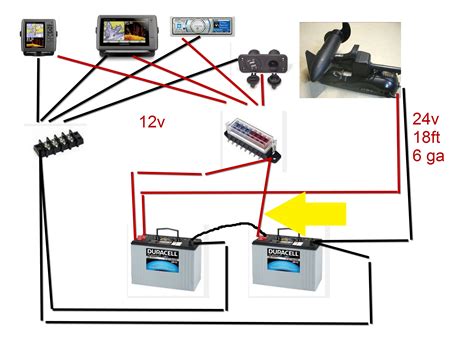

Connecting batteries in a series configuration combines their individual voltages (12V + 12V = 24V) while keeping the overall capacity (measured in Amp-Hours) the same as a single battery. Follow this systematic process to construct your 24V power grid.

Step 1: Position and Secure the Battery Trays

Place your two 12V batteries into heavy-duty, marine-grade battery trays or boxes. Position them adjacent to each other in a well-ventilated, low-vibration compartment of your boat, typically in the stern or under the center console. Ensure the trays are securely fastened to the deck using stainless steel screws to prevent shifting during heavy seas. Place the batteries so that the positive terminal of Battery 1 is close to the negative terminal of Battery 2 to minimize the length of the series jumper wire.

Step 2: Install the Series Jumper Cable

Take your heavy-duty, pre-terminated jumper wire (ideally 6 AWG tinned copper). Attach one end of this jumper wire to the negative (black) terminal of Battery 1. Secure the opposite end of the jumper wire to the positive (red) terminal of Battery 2.

Pro-Tip: Always use hex nuts with lock washers or nylon insert lock nuts to tighten connections on marine battery studs. Do not use wing nuts; boat vibrations will eventually loosen them, creating a high-resistance connection that can melt battery terminals. Torque all nuts to the battery manufacturer's exact specifications, usually around 110 to 120 inch-pounds.

Step 3: Mount and Wire the Marine Circuit Breaker

Locate a dry, accessible bulkhead within seven inches of Battery 1’s positive terminal. Securely mount your manual-reset, waterproof 50-amp or 60-amp circuit breaker to this surface. Run a short piece of red, marine-grade positive wire from the positive (red) terminal of Battery 1 to the "Line" or "Input" post on your circuit breaker. Terminate both ends of this wire with tinned copper ring terminals, seal them with adhesive-lined heat shrink, and tighten the connections.

Warning: Never bypass the circuit breaker. A direct short in a 24-volt trolling motor system can instantly generate temperatures exceeding 1,000 degrees Fahrenheit, melting insulation, destroying your trolling motor's control board, and risking a catastrophic vessel fire.

Step 4: Route and Protect the Primary Wiring Run

Measure the distance from your battery compartment to the bow or stern where the trolling motor plug will be installed. Cut a length of red (positive) wire and black (negative) wire to span this distance, adding an extra 10% of length for slack and routing around obstacles.

Route the red wire from the "Load" or "Output" post of your circuit breaker to the positive terminal of your trolling motor plug or receptacle. Route the black wire from the negative (black) terminal of Battery 2 directly to the negative terminal of the trolling motor plug or receptacle. Run these wires through protective split-conduit loom, securing them along the boat’s gunwales or inside rigging tubes using UV-resistant zip ties every 18 inches. Keep these high-current wires isolated from transducer cables and VHF radio wiring to eliminate electromagnetic interference on your electronics.

Step 5: Terminate and Connect to the Trolling Motor Plug

Using wire strippers, expose approximately half an inch of bare copper on both the red and black primary wires. Slide a piece of adhesive-lined heat shrink tubing over each wire before terminating. Insert the stripped wires into the terminals of your marine plug or receptacle, paying strict attention to the polarity markings (+ and -) molded into the connector body. Securely tighten the terminal screws or crimp the integrated connectors. Slide the heat shrink over the back of the plug connections and apply heat until the adhesive oozes slightly from the ends, creating an airtight, watertight seal.

Test the completed circuit before plugging in your motor. Turn the circuit breaker to the "On" position. Set your digital multimeter to DC voltage and insert the test probes into the positive and negative ports of the trolling motor receptacle. The meter should display a steady reading between 25.2V and 26.8V depending on the state of charge of your 12-volt batteries.

Marine-Grade Wire Gauge (AWG) and Circuit Breaker Reference Specifications

Selecting the correct wire gauge is determined by two variables: the maximum current draw of your trolling motor (measured in amps) and the total length of the wire run (measured in feet, calculated as the round-trip distance from the battery bank to the motor and back). Marine systems should aim for less than a 3% voltage drop to critical electronics and high-load systems to ensure maximum efficiency and performance.

The following table provides the required American Wire Gauge (AWG) sizes for a standard 24V trolling motor system operating under typical load conditions.

Diagnosing Marine Voltage Drop and Electrical Failures

Marine electrical systems operate in highly corrosive, high-vibration environments that accelerate wear and degradation. If your 24V trolling motor loses power, runs intermittently, or fails to start, use these diagnostic protocols to identify and resolve the issue.

• Scenario 1: The trolling motor loses power under high thrust, or the circuit breaker trips repeatedly.


  • Root Cause: This is typically caused by excessive heat generation due to undersized primary wiring, a faulty circuit breaker, or physical obstruction in the motor propeller. Undersized wire acts as a resistor, dropping the voltage and spiking the amperage draw.
  • Actionable Fix: Check the propeller shaft for wrapped fishing line or weeds, which can cause the motor to bind and pull excessive current. If the shaft is clear, measure the wire run length. If you are using 10 AWG wire on a 20-foot run, upgrade the entire wire run to 6 AWG tinned copper. Inspect the circuit breaker for internal resistance; replace the breaker if it feels abnormally hot to the touch or trips at currents below its rating.
• Scenario 2: The digital multimeter reads 24V at the battery bank, but reads 18V or less at the trolling motor plug.


  • Root Cause: Severe voltage drop caused by corrosion inside wire jackets, loose terminal connections, or poorly crimped ring terminals. Corrosion increases electrical resistance, consuming voltage as heat before it reaches the motor plug.
  • Actionable Fix: Use a multimeter to perform a voltage drop test across your connections. Clean all battery studs with a wire brush to remove oxidation. Cut off any green, corroded wire ends until you reach clean, bright copper. Crimp new tinned-copper lugs onto the fresh wire, apply dielectric grease, and seal the connection securely with dual-wall adhesive-lined heat shrink tubing.
• Scenario 3: One battery in the 24V bank is hot and bulging, while the other is cool and undercharged.


  • Root Cause: Severe battery imbalance. This happens when batteries of different ages, capacities, or chemistry types are wired in series, or if a 12V accessory (like a fishfinder or bilge pump) is tapped off only one of the batteries in the 24V bank.
  • Actionable Fix: Replace both batteries at the same time with identical, brand-new models. Ensure that no 12V accessories are connected directly to individual batteries in your 24V bank. All auxiliary 12V loads must be wired to a dedicated house battery or run through a proper DC-to-DC voltage converter.
• Scenario 4: The trolling motor runs in reverse (propeller spins backward) when turned on.


  • Root Cause: Reversed polarity at the batteries, circuit breaker, or the trolling motor plug receptacle. The positive and negative leads have been swapped during installation.
  • Actionable Fix: Turn off the circuit breaker immediately. Trace your red and black primary wires from the batteries to the plug. Ensure the red positive lead runs from the positive terminal of Battery 1 (via the breaker) to the positive terminal of the plug. Ensure the black negative lead runs from the negative terminal of Battery 2 to the negative terminal of the plug. Swap the connections at the plug or the batteries to restore correct polarity.

Frequently Asked Questions

Can I run a 24V trolling motor using a single 12V marine battery?

No, a 24V trolling motor will not operate on a single 12V battery. The control boards and motor windings require a minimum voltage threshold to function; supplying only 12V will cause the motor to stall, overheat, or fail to start, which can damage the internal electronics.

Do I need to disconnect the series jumper cable when charging my 24V battery bank?

You do not need to disconnect the series jumper if you are using an onboard, multi-bank marine smart charger. These chargers have isolated outputs that charge each 12V battery independently and safely. However, if you are using a single 12V portable charger, you must charge each battery one at a time, or disconnect the jumper to charge them simultaneously on separate units.

Why shouldn't I use standard automotive wire to rig my boat's trolling motor?

Automotive wire uses bare copper strands that oxidize rapidly when exposed to moisture, leading to high resistance, heat buildup, and eventual wire failure. Marine-grade wire (specifically UL 1426 certified) is made of individually tinned copper strands that resist corrosion and a durable, flame-retardant PVC jacket designed to withstand acid, oil, heat, and structural vibration.

How do I know if I need a 50-amp or a 60-amp circuit breaker for my 24V setup?

You must consult your trolling motor's user manual to determine its maximum current draw at full thrust. Most 24V trolling motors with 70 to 80 pounds of thrust have a max draw of 50 to 56 amps, which requires a 60-amp circuit breaker. Motors with a lower draw of 40 to 45 amps can safely utilize a 50-amp circuit breaker.

Can I mix a lithium battery with an AGM battery to create a 24V trolling motor bank?

No, you must never mix lithium and lead-acid/AGM batteries in a series connection. Lithium batteries have different nominal voltages, discharge curves, and internal resistance levels than lead-acid batteries. Mixing them will cause the lead-acid battery to over-discharge and ruin the lithium battery’s BMS (Battery Management System).
