Comprehensive Guide To Wiring Electric Trailer Brakes: Standards, Installation, And Safety Calibration

Successfully wiring electric trailer brakes involves establishing a dedicated 12V DC circuit from a cabin-mounted brake controller through a 7-way connector to the trailer's electromagnetic actuators. This process requires 10-12 AWG duplex wire to handle high amperage loads and a specialized ground return system to ensure the magnets receive consistent voltage for proportional stopping power.

Essential Gear and Electrical Foundation for Trailer Brake Installation

Before beginning the physical installation, it is critical to understand the electrical load requirements of a trailer brake system. Unlike standard lighting, which draws minimal current, electric brake magnets can pull up to 3.0 to 4.0 amps each. On a tandem-axle trailer, the total draw can reach 12 to 16 amps, necessitating heavy-gauge wiring to prevent voltage drop and overheating. The industry standard for the primary brake output wire (typically blue) is 12 AWG for short runs and 10 AWG for trailers exceeding 20 feet.

Required Tools and Materials Checklist

• Electric Brake Controller: Proportional (inertia-based) or time-delayed unit.
• 7-Way Trailer Connector: Vehicle-side socket and trailer-side plug (SAE J2863 compliant).
• Wire Gauges: 10 or 12 AWG (Blue for brakes, Black for 12V power), 14 AWG (Yellow/Green/Brown for lights), and 10 AWG (White for Ground).
• Circuit Breakers: 20A or 30A auto-reset breakers (never use fuses for brake power).
• Connection Hardware: Heat-shrink butt connectors, ring terminals, and nylon wire ties.
• Protection: High-temperature split loom tubing and electrical grommets.
• Testing Equipment: Digital Multimeter or a dedicated 7-way circuit tester.

Prerequisite Standards and Benchmarks

• SAE J1239 & J2863: Familiarize yourself with these standards for automotive trailer towing connections to ensure color-code consistency.
• Estimated Duration: 3 to 5 hours for a full vehicle-and-trailer overhaul.
• Voltage Target: 12.6V to 13.8V at the battery; no more than a 10% voltage drop at the furthest brake magnet.

The Complete Electrical Integration Workflow for Electric Brakes

The following procedure outlines the integration of the tow vehicle’s electrical system with the trailer’s braking hubs. This process is divided into the vehicle-side installation and the trailer-side distribution.

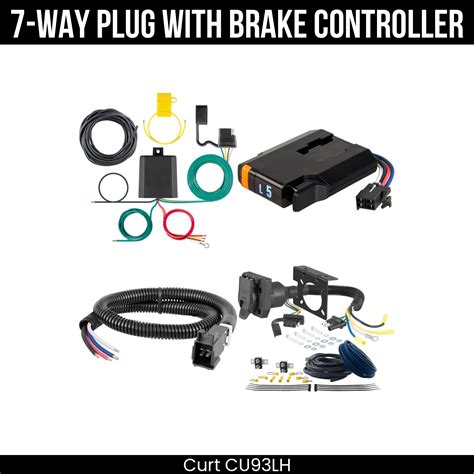

Step 1: Mounting and Wiring the Brake Controller

The brake controller is the "brain" of the system. It must be mounted within reach of the driver so the manual override lever can be accessed in an emergency. Most modern controllers use a four-wire interface:

1. Black (Battery Power): Run a 12 AWG wire from the controller, through the firewall, to a 20A or 30A auto-reset circuit breaker mounted near the vehicle battery. Connect the breaker to the positive terminal.
2. White (Ground): Connect this to a clean, paint-free chassis ground or directly to the negative battery terminal. A poor ground is the most common cause of "trailer disconnected" errors.
3. Red (Brake Stop Light Switch): Use a multimeter to find the wire on the vehicle’s brake pedal switch that only shows 12V when the pedal is depressed. Tap into this wire.
4. Blue (Brake Output): This wire carries the modulated power to the trailer. Run this wire along the vehicle frame back to the 7-way connector.

Warning: Do not use a standard fuse for the brake controller power. In the event of a momentary short, a fuse will blow and leave you with zero brakes. An auto-reset circuit breaker will trip and reset, providing intermittent braking power until the fault is cleared.

Step 2: Installing the Vehicle-Side 7-Way Socket

At the rear of the tow vehicle, install the 7-way blade-style socket. Follow the standard wiring configuration to ensure compatibility with other trailers:

• Center Pole: Auxiliary 12V power or reverse lights.
• 2 o'clock Position: 12V Battery charge line (Black).
• 5 o'clock Position: Electric Brakes (Blue).
• 7 o'clock Position: Ground (White).
• 9 o'clock Position: Left Turn/Brake (Yellow).
• 11 o'clock Position: Tail/Running Lights (Brown).
• 1 o'clock Position: Right Turn/Brake (Green).

When connecting the Blue wire from the brake controller to the 5 o'clock pin, ensure the terminal is tightened and coated with dielectric grease to prevent corrosion.

Step 3: Routing and Grounding the Trailer-Side Wiring

On the trailer, the wiring begins at the 7-way plug. The Blue wire must travel down the length of the trailer frame to the axles.

1. Main Trunk: Run the Blue wire inside the trailer frame or within protective conduit. Use 12 AWG duplex wire (which contains both a power and a ground lead) for the best results.
2. Junction Box: It is highly recommended to install a weather-sealed junction box near the trailer tongue. This allows for organized connections between the 7-way pigtail and the trailer’s internal wiring.
3. The Grounding Circuit: Do not rely solely on the trailer frame for grounding. Run a dedicated White 10 AWG ground wire from the 7-way plug to each brake magnet. Frame-based grounds often fail due to rust, paint, or vibration at the hitch ball.

Step 4: Connecting the Brake Magnets

Inside each wheel hub is an electromagnetic actuator with two wires (usually both the same color, often white or green). Electric brake magnets are non-polar, meaning it does not matter which wire is used for power or ground.

1. Split the main Blue brake wire at the axle and run one lead to each magnet.
2. Connect one wire from the magnet to the Blue power lead.
3. Connect the second wire from the magnet to the White ground return lead.
4. Use heat-shrink butt connectors. Standard crimp connectors will fail quickly in the high-moisture environment behind a wheel.

Pro-Tip: Secure the wires to the axle using rubber-lined P-clips or heavy-duty UV-rated zip ties. Ensure there is enough slack ("service loop") to allow for the full vertical travel of the suspension without tensioning the wires.

Step 5: Integrating the Breakaway System

The breakaway switch is a mandatory safety device. It consists of a small battery box and a pull-pin switch.

1. Connect one wire of the breakaway switch to the constant 12V positive wire (Black) coming from the trailer’s on-board battery or the 7-way plug's charge line.
2. Connect the other wire of the breakaway switch directly to the Blue brake output wire.
3. When the pin is pulled, the breakaway battery sends immediate 12V power to the brakes, locking them if the trailer detaches from the vehicle.

Technical Specifications for Trailer Wiring and Gauge Requirements

The following table outlines the standardized color coding and wire gauge requirements for a heavy-duty 7-way trailer brake system. Adhering to these specifications prevents overheating and ensures optimal signal integrity.

Resolving Common Electric Brake Circuit Failures

Electrical issues in trailer brakes usually manifest as intermittent operation, "weak" braking, or a complete loss of signal. Systematic troubleshooting is required to isolate whether the fault lies in the vehicle, the connector, or the trailer hubs.

• Symptom: Brake Controller Displays "NC" or "No Connection"




  • Root Cause: A break in the Blue wire circuit or a failed ground. This often occurs at the 7-way plug due to terminal corrosion or a loose wire inside the plug housing.
  • Actionable Fix: Clean the 7-way pins with a wire brush and electrical cleaner. Use a multimeter to check for continuity between the Blue pin at the plug and the magnets at the hub.

• Symptom: Brakes Feel Weak Even at Maximum Gain




  • Root Cause: Voltage drop caused by undersized wiring (e.g., using 16 AWG instead of 12 AWG) or "high resistance" grounds. It can also be caused by worn magnet faces or grease-contaminated brake shoes.
  • Actionable Fix: Measure the voltage at the brake magnets while an assistant applies the manual override. If the voltage at the magnet is more than 1.5V lower than the voltage at the controller, replace the wiring with a heavier gauge and ensure a direct ground-to-battery connection.

• Symptom: Trailer Brakes Lock Up Immediately Upon Touching the Pedal




  • Root Cause: The brake controller gain is set too high for the load weight, or the controller is not leveled correctly (for older inertia-based units). Occasionally, this is caused by a short between the 12V charge line (Black) and the Brake line (Blue).
  • Actionable Fix: Recalibrate the controller sensitivity. Inspect the 7-way junction box for any stray wire strands touching between the Black and Blue terminals.

• Symptom: Intermittent Brakes When Hitting Bumps




  • Root Cause: Loose connections or "chafed" wires inside the axle tube or along the frame that are momentarily grounding out.
  • Actionable Fix: Inspect the points where wires enter and exit the axle. Install rubber grommets if the wire is rubbing against sharp metal edges. Replace any section of wire where the insulation is compromised.

Frequently Asked Questions

Can I wire electric brakes using a 4-pin flat connector?

No, a 4-pin connector only supports ground, running lights, and left/right turn signals. It does not have a dedicated circuit for the high-amperage brake output. You must upgrade to a 7-way blade connector to safely operate electric trailer brakes.

Does it matter which wire on the brake magnet is power and which is ground?

Electric brake magnets function using an electromagnetic coil that creates a magnetic field regardless of current direction. Therefore, the two wires on the magnet are interchangeable; one connects to the blue power source and the other to the white ground.

Why do I need an auto-reset circuit breaker instead of a fuse?

Brake systems generate significant heat and occasional current spikes. A fuse is a one-time failure point that leaves you without brakes in traffic. An auto-reset breaker allows the circuit to "pulse" and recover, providing a measure of safety if a temporary fault occurs.

How do I test if my brake magnets are actually working?

The most effective way is to perform an amperage test. Use a DC clamp-on ammeter around the blue wire while the manual override is fully engaged. A single 10-inch or 12-inch magnet should draw approximately 3.0 to 4.0 amps. If the draw is zero, the magnet or the wiring is disconnected.

Do I need to ground the brakes to the trailer frame or the battery?

While many manufacturers ground to the frame, the most reliable method is a "home run" ground. This involves running a dedicated white wire from each magnet back to the 7-way plug's ground pin. This bypasses potential resistance from rusty hinges, bolts, and frame members.

Secure Your Towing Safety

Precision wiring is the foundation of trailer safety and vehicle longevity. By following these technical standards and using high-quality components, you ensure your electric brakes respond reliably under every hauling condition.
