How To Wire A Water Well Pump: A Comprehensive Technical Installation Guide
Wiring a water well pump requires precise adherence to National Electrical Code (NEC) standards, specifically focusing on pump horsepower, voltage requirements, and wire gauge sizing based on total run distance. Proper execution ensures motor longevity and safety by establishing secure, waterproof connections and accurate pressure switch configuration to prevent thermal overload or phase imbalance.
Essential Preparation and Technical Requirements
Before initiating the electrical installation of a submersible well pump, verify the compatibility of your power source with the motor specifications listed on the pump’s data plate. Submersible pumps are typically 230V or 115V, with the former being standard for deeper wells to minimize voltage drop. Failure to calculate the correct wire gauge—accounting for the distance between the breaker panel and the wellhead—will lead to excessive resistance, motor overheating, and premature pump failure.
Tools and Equipment:
- Digital multimeter (True RMS preferred for accurate voltage readings).
- Submersible pump splice kit (heat-shrink tubing with adhesive lining).
- Wire strippers sized for 10-14 AWG submersible cable.
- Torque-rated screwdriver or hex keys for terminal block connections.
- Insulated crimp connectors or butt splices specifically rated for underwater use.
- Electrical tape (high-grade vinyl) for bundling and strain relief.
- Submersible pump cable (typically UF-B or specialized well pump cable).
Prerequisite Standards:
- All wiring must comply with the NEC Article 430 regarding motor circuits.
- A dedicated circuit breaker must be installed to match the motor's full-load amperage (FLA).
- Grounding is non-negotiable; ensure a continuous equipment grounding conductor is bonded to the pump motor frame.
The Technical Execution Workflow
Step 1: Evaluating the Pump Motor and Control Box Requirements
Identify the motor type before wiring. A two-wire pump includes the start capacitor inside the motor housing, while a three-wire pump requires a separate, external control box containing the start relay and capacitor. If installing a three-wire pump, locate the control box in a cool, dry, and accessible area. Do not install the control box in direct sunlight or in the well pit itself, as excessive heat will degrade the internal starting components.
Step 2: Preparing the Submersible Splice
The connection between the pump lead and the drop cable is the most common point of failure. Strip approximately 0.5 inches of insulation from the wires. Ensure that the colors—typically black, red, and yellow for three-wire systems—are correctly identified. Use high-quality crimp connectors to join the leads.
Warning: Never use standard wire nuts for well pump splices. They are not waterproof and will corrode immediately, leading to a dead short or pump failure. Only utilize heat-shrink kits that provide a watertight, hermetic seal.
Step 3: Sealing the Splice
Slide the heat-shrink tubing over the splice. Using a heat gun, apply heat evenly until the adhesive begins to ooze from the edges of the tubing, indicating a proper seal. After the splice cools, test the integrity of the seal by tugging gently on the cables. Ensure the final bundle is taped tightly to the drop pipe every five to ten feet to prevent the cable from snagging on the well casing during installation.

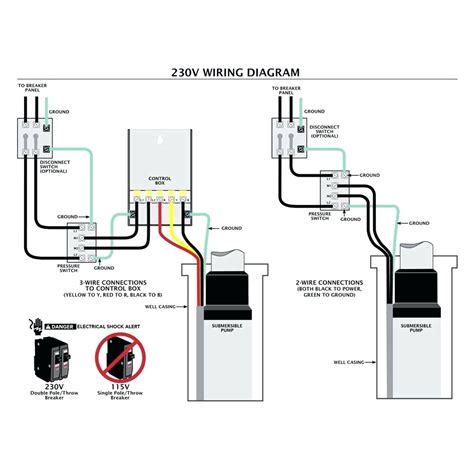

Step 4: Connecting the Pressure Switch and Control Box
Mount the pressure switch on the water supply line near the pressure tank. The pressure switch acts as the electrical gatekeeper, signaling the pump to activate when pressure drops below the set threshold (typically 30 or 40 PSI). Run the supply lines from the breaker panel to the line side of the pressure switch, and the load side of the switch to the control box (for three-wire) or directly to the pump wires (for two-wire). Ensure all conduits are liquid-tight to prevent well-water or moisture ingress into the electrical junctions.
Step 5: Establishing Grounding and Final Safety Checks
Verify that the equipment grounding conductor is securely fastened to the grounding lug inside the control box and connected back to the main service panel’s grounding bus. Before energizing the system, use your multimeter to perform a continuity check between the ground wire and the pump lead. If there is low resistance, you have a short circuit that must be rectified before turning on the power.
RPS 400 Solar Well Pump Kit - RPS Solar Pumps
Wire Sizing and Technical Specifications Matrix
Selecting the correct gauge is critical for preventing voltage drop, which is the primary cause of submersible motor winding burnout. The following table provides the recommended copper wire gauge (AWG) based on motor horsepower and distance from the power source to the well.
| Motor Horsepower | Voltage | Distance to 100 Feet | Distance to 200 Feet | Distance to 300 Feet |
|---|---|---|---|---|
| 0.5 HP | 230V | 14 AWG | 12 AWG | 10 AWG |
| 0.75 HP | 230V | 14 AWG | 10 AWG | 10 AWG |
| 1.0 HP | 230V | 12 AWG | 10 AWG | 8 AWG |
| 1.5 HP | 230V | 10 AWG | 8 AWG | 6 AWG |
Troubleshooting Common Electrical Failures
- Root Cause: Motor hums but fails to start.
- Actionable Fix: This indicates a faulty start capacitor or a failed relay in the control box. Replace the control box or the internal capacitor unit after verifying that the pressure switch is sending power to the control box.
- Root Cause: Breaker trips immediately upon demand.
- Actionable Fix: Check for a direct short in the underwater splice or damage to the pump cable insulation. Use a megohmmeter (megger) to test the insulation resistance between the leads and the ground. If the cable is compromised, the pump must be pulled to replace the damaged section.
- Root Cause: Pressure switch clicks rapidly (Short cycling).
- Actionable Fix: This is often a result of an improperly wired pressure switch or a waterlogged pressure tank. Ensure the switch terminals are tight; if the wiring is secure, replace the air bladder in the pressure tank to stabilize the cycling pressure.
Frequently Asked Questions
Can I use standard Romex wire for the down-well pump run?
No. Standard Romex (NM-B) wire is designed for indoor, dry environments and will disintegrate when exposed to water. You must use specialized submersible pump cable, which is jacketed in a high-density, waterproof insulation specifically rated for direct burial and submersion.
Why does a three-wire pump require a control box?
A three-wire pump motor utilizes a capacitor and a relay to provide the high starting torque necessary to get the impeller moving. The control box houses these components away from the motor to prevent excessive heat buildup and to allow for easier maintenance if the starting components fail.
How do I determine if my well pump is 115V or 230V?
Check the metal data plate located on the side of the motor housing. If the pump is already installed and the label is illegible, use a multimeter to measure the voltage at the load side of the pressure switch when the pump is attempting to start.
What happens if I use a wire gauge that is too small?
Using an undersized wire increases electrical resistance, which causes the voltage at the pump motor to drop. A low-voltage condition forces the motor to draw higher current to produce the same torque, eventually leading to overheating, insulation breakdown in the windings, and total motor failure.
Consult with a licensed master electrician or a certified well pump technician to ensure your installation meets all local building codes and regional safety ordinances. Proper professional oversight guarantees that your system operates at peak hydraulic efficiency while protecting your investment from electrical damage.
